KQ2-sarjan yhden kosketuksen kiinnitys Toimittajat

Kotiin / Tuotteet / Pneumaattinen lisävaruste / Yhden kosketuksen sovitus / KQ2-sarjan yhden kosketuksen kiinnitys

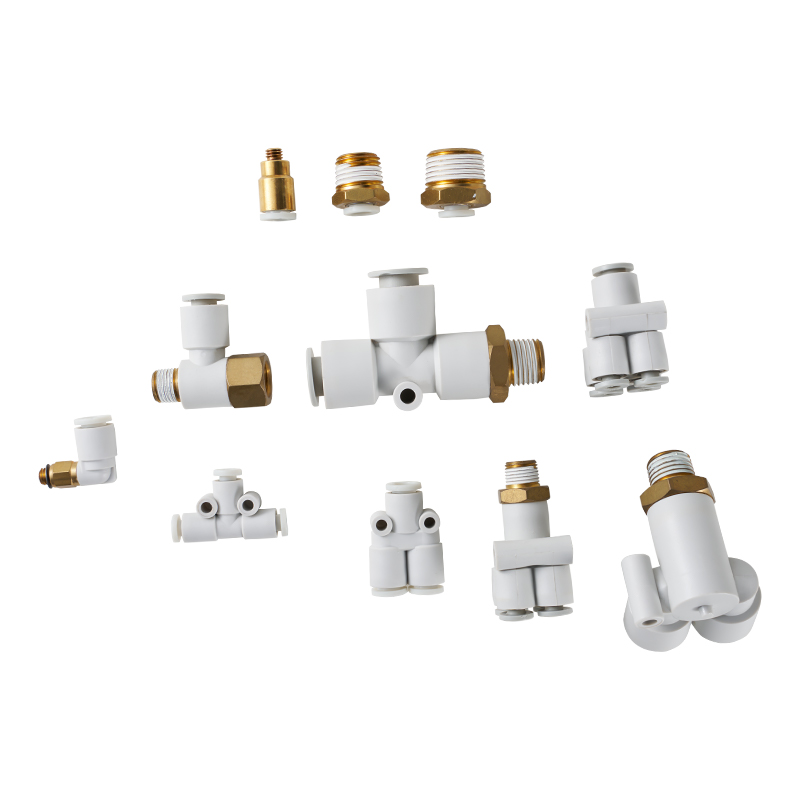

KQ2-sarjan yhden kosketuksen kiinnitys KQ2-sarjan yhden kosketuksen kiinnitys
  • KQ2-sarjan yhden kosketuksen kiinnitys
  • KQ2-sarjan yhden kosketuksen kiinnitys
Yhden kosketuksen sovitus

KQ2-sarjan yhden kosketuksen kiinnitys

KQ2-sarjan yhden kosketuksen liitin on ydinkomponentti, joka on suunniteltu yksinkertaistamaan nesteputkien liitäntätoimintoja. Sen ydinsuunnittelukonsepti keskittyy nopeiden ja helppojen asennus- ja irrotusprosessien saavuttamiseen varmistaen samalla liitoksen vakauden ja tiivistyksen eheyden, ja se sopii useisiin nesteensiirtoskenaarioihin.

Perusmukavuus: Tämän sarjan huomionarvoinen ominaisuus on sen yksivaiheinen toimintamekanismi, joka vaatii yleensä vain yhden painalluksen putkiliittimen luotettavan asennuksen suorittamiseksi ja tehokkaan tiivisteen muodostamiseksi, mikä yksinkertaistaa asennusprosessia huomattavasti.

Yhteyden luotettavuus: Rakenteessa on sisäänrakennettu tarkka lukitusrakenne, joka lukittuu automaattisesti, kun putkiliitos on asennettu oikein, mikä estää tehokkaasti vahingossa tapahtuvan irtoamisen tärinän, paineen vaihtelun tai tahattoman vedon vaikutuksesta ja varmistaa liitoskohdan pitkäaikaisen vakauden.

Tiivistystakuu: Integroidut ja optimoidut tiivistyskomponentit voivat tarjota jatkuvan ja tehokkaan tiivistystehon määritetyissä käyttöolosuhteissa ja nesteen yhteensopivuusalueella, mikä vähentää vuotojen riskiä.

Laaja sopeutumiskyky: Yhteensopivuus on otettu huomioon suunnittelussa ja materiaalivalinnassa, ja se voi mukautua useisiin yleisiin putkispesifikaatioihin ja -tyyppeihin vastaamaan erilaisten nestejärjestelmien rakenteiden perustarpeita.

Huoltomukavuus: Kätevä vapautusmekanismi on suunniteltu mahdollistamaan putkien nopea ja tuhoamaton poistaminen tarvittaessa, mikä helpottaa järjestelmän tarkastusta, huoltoa tai uudelleenjärjestelyä ja parantaa myöhemmän huollon tehokkuutta.

Sähköposti: manager@cktworld.com
Lataa
EDELLINEN：KC-sarjan itsetiivistävä yhden kosketuksen kiinnitys
SEURAAVA：Ei seuraavaa artikkelia
  • Neste Ilmaa /Vesi
    Materiaali Messinki
    Max Toiminnassa Paine 1,0 MPa
    Tyhjiö Paine -100kPa
    Todistus Paine 3,0 MPa
    Toiminnassa Lämpötila Alue Ilmaa:-5~60℃,Water:0~40℃
    Sovellettava Putket Materiaali Nylon, uretaani
    Sovellettava Asennus Koko Ø4,Ø6,Ø8,Ø10,Ø12,Ø16

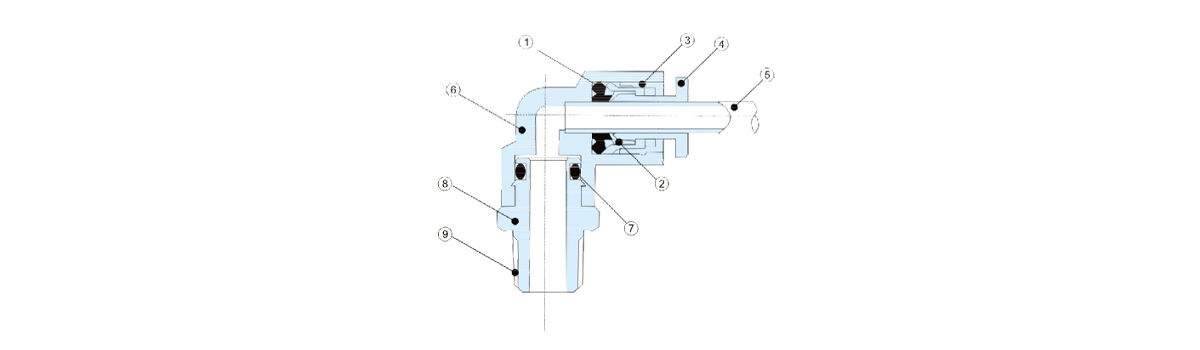

  • ① Seal NBR
    ② Chuck Stainless Steel
    ③ Guide Stainless Steel Or Brass
    ④ Release Button POM
    ⑤ Tubing Nylon Or Urethane
    ⑥ Body PBT
    ⑦ O ring NBR
    ⑧ Material Body Brass
    ⑨ Thread M/R/Rc

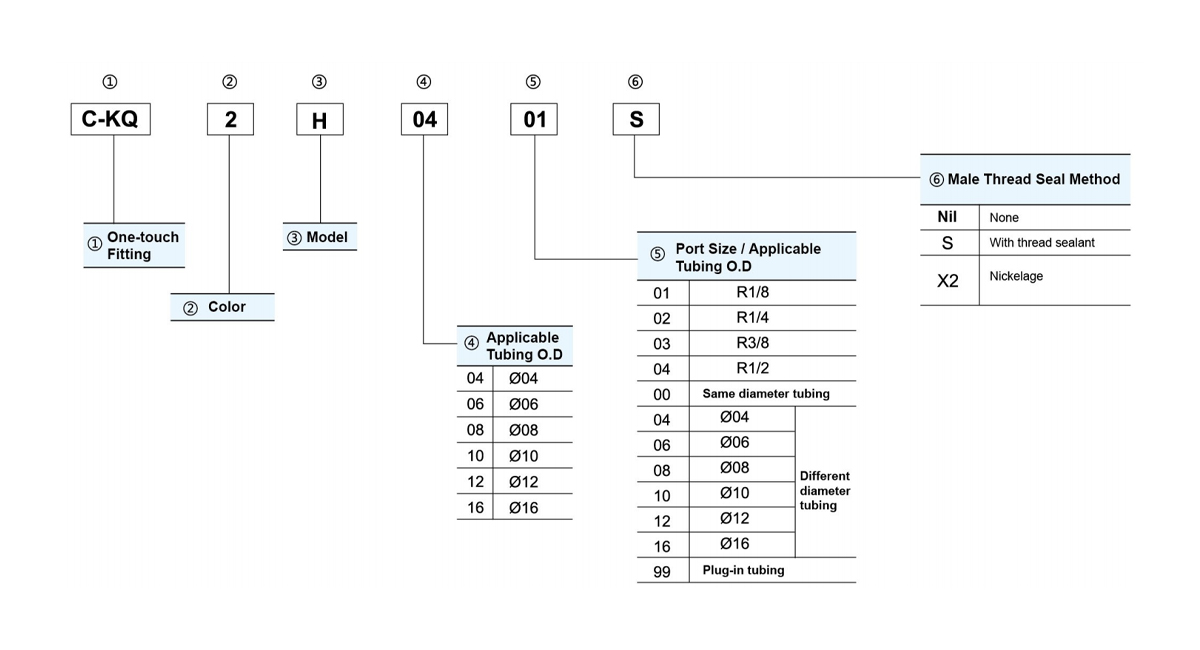

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L A M
    Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane

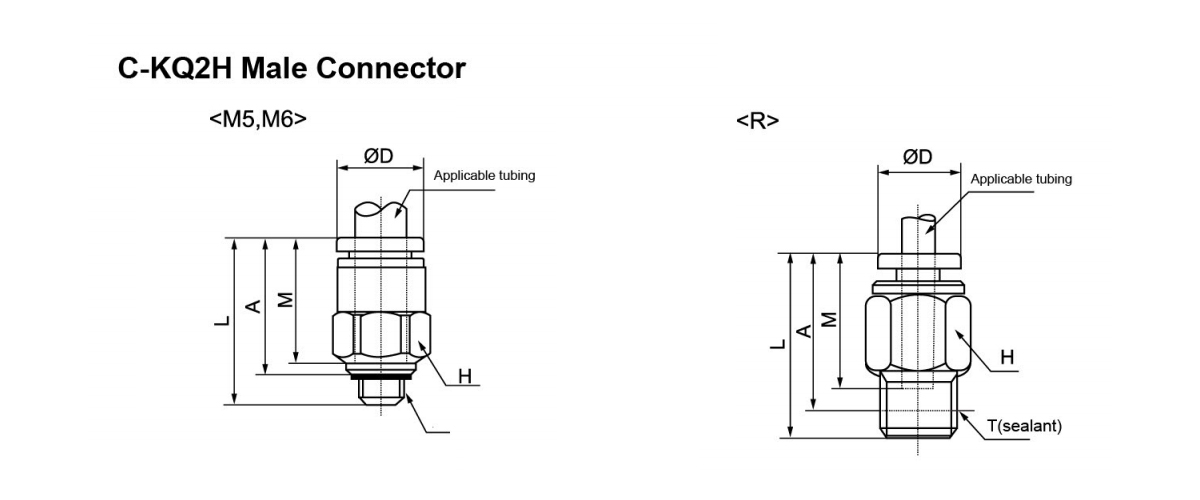

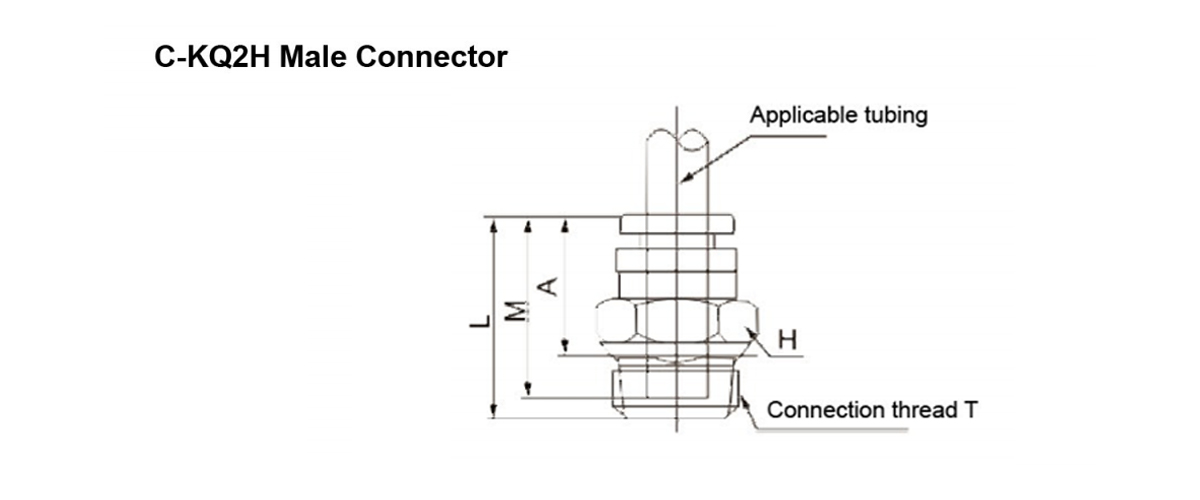

    Ø4 C-KQ2H04-01S 1/8 10 - 22 18 16 5.6 4 9
    C-KQ2H04-02S 1/4 14 - 19.5 13.5 16
    Ø6 C-KQ2H06-01S 1/8 12 - 22.5 18.5 17 13.1 10.4 16
    C-KQ2H06-02S 1/4 14 - 23 17 14
    C-KQ2H06-03S 3/8 17 - 22 15.5 27
    Ø8 C-KQ2H08-01S 1/8 14 - 28 24 18.5 26.1 18.0 21
    C-KQ2H08-02S 1/4 26.5 20.5 19
    C-KQ2H08-03S 3/8 17 - 22 15.5 26
    Ø10 C-KQ2H10-01S 1/8 17 - 30 26 21 26.1 26.1 19
    C-KQ2H10-02S 1/4 33.5 27.5 41.5 29.5 30
    C-KQ2H10-03S 3/8 29 22.5 30
    C-KQ2H10-04S 1/2 22 - 27 19 53
    Ø12 C-KQ2H12-02S 1/4 19 - 34.5 28.5 22 58.3 46.1 42
    C-KQ2H12-03S 3/8 30 23.5 34
    C-KQ2H12-04S 1/2 22 - 22 51
    Ø16 C-KQ2H16-03S 3/8 24 25.7 39.5 33 25 81 (81) 61
    C-KQ2H16-04S 1/2 35.5 27.5 113 (96) 47


    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

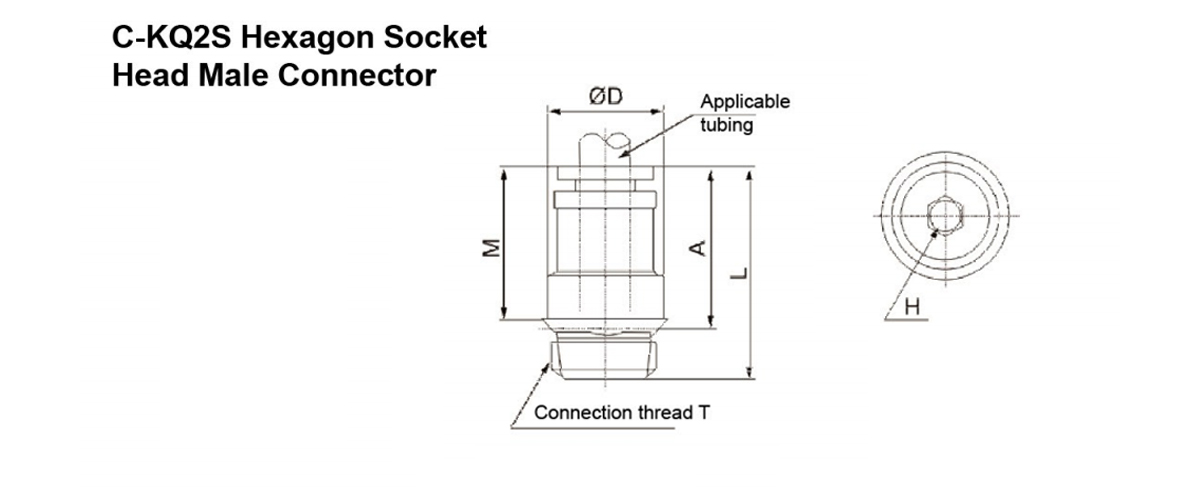

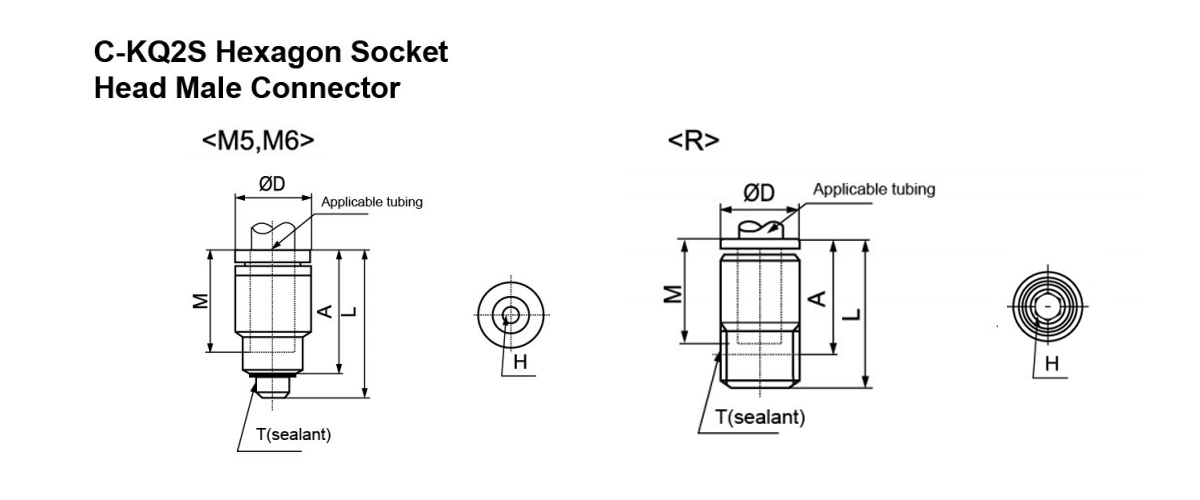

    Ø4 C-KQ2S04-01S 1/8 3 9.8 23 19 16 4.1 3.6 8
    Ø6 C-KQ2S06-01S 1/8 4 11.8 24 20 17 10.0 9.9 9
    C-KQ2S06-02S 1/4 13.8 24 18 10.7 10.0 15
    Ø8 C-KQ2S08-01S 1/8 5 14 28 24 18.5 17.2 16.2 12
    C-KQ2S08-02S 1/4 6 25.5 19.5 23.3 11
    C-KQ2S08-03S 3/8 17 27.5 21 24
    Ø10 C-KQ2S10-01S 1/8 5 17 30 26 21 17.2 16.2 18
    C-KQ2S10-02S 1/4 8 27.5 21.5 39.0 26.6 12
    C-KQ2S10-03S 3/8 21 19
    C-KQ2S10-04S 1/2 22 28 20 35
    Ø12 C-KQ2S12-02S 1/4 8 19 33.5 27.5 22 46.0 44.5 23
    C-KQ2S13-03S 3/8 10 29 22.5 60.0 18
    C-KQ2S12-04S 1/2 22 28 20 30
    Ø16 C-KQ2S16-03S 3/8 10 25.7 39 32.5 25 81 (81) 42
    C-KQ2S16-04S 1/2 12 35 27 113 (96) 34

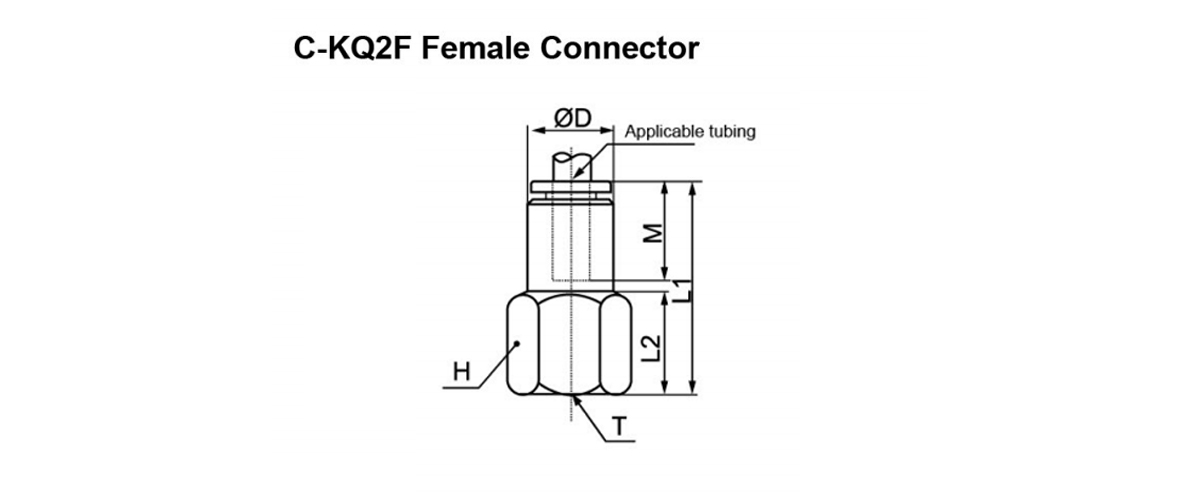

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L1 L2 M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2F04-01 1/8 14 10 27 11 16 5.6 4 15
    C-KQ2F04-02 1/4 17 31 14 23
    Ø6 C-KQ2F06-01 1/8 14 12 27.5 11 17 13.1 10.4 15
    C-KQ2F06-02 1/4 17 31 13 22
    C-KQ2F06-03 3/8 19 33.5 15 25
    Ø8 C-KQ2F08-01 1/8 14 14 29 11 18.5 26.1 18.0 17
    C-KQ2F08-02 1/4 17 32.5 13 24
    C-KQ2F08-03 3/8 19 33.5 14 24
    Ø10 C-KQ2F10-02 1/4 17 17 34.5 14 21 41.5 29.5 27
    C-KQ2F10-03 3/8 19 36.5 15 30
    Ø12 C-KQ2F12-02 1/4 19 19 35 14 22 58.3 46.1 36
    C-KQ2F12-03 3/8 37 31
    C-KQ2F12-04 1/2 24 41 18 52
    Ø16 C-KQ2F16-03 3/8 24 25.7 38 15 25 81 (81) 59
    C-KQ2F16-04 1/2 43 19 113 (96) 58


    Applicable Tubing O.D
    (mm)     		Model ØD L M Effective Area
    (mm²)
    Weight
    (g )

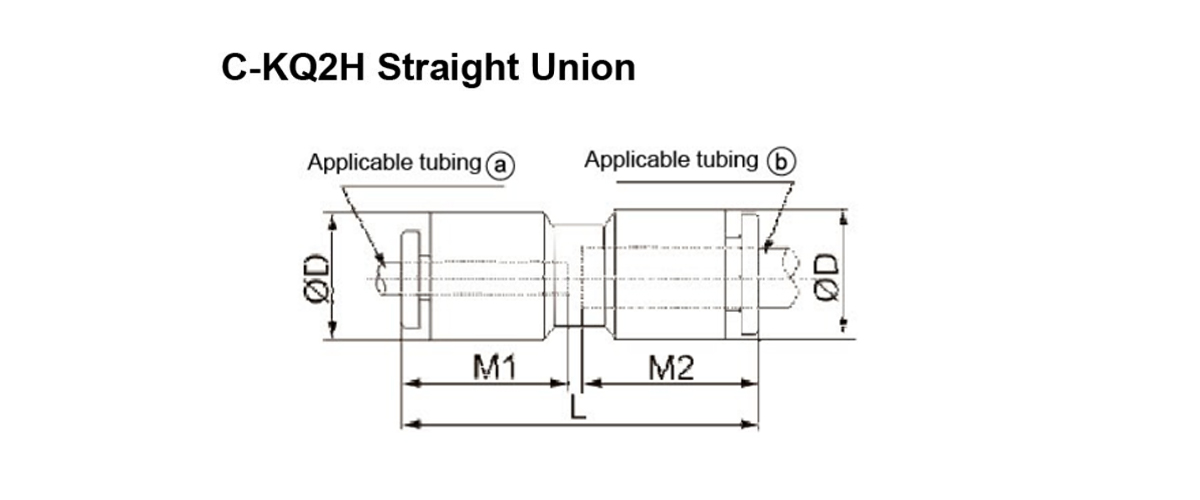

    ⓐ ⓑ 1 2 Nylon Urethane
    Ø4 C-KQ2H04-00 10.4 32.5 16 5.6 4 3
    Ø6 C-KQ2H06-00 12.8 34.5 17 13.1 10.4 4
    Ø8 C-KQ2H08-00 15.2 38.5 18.5 26.1 18.0 6
    Ø10 C-KQ2H10-00 18.5 42.5 21 41.5 29.5 11
    Ø12 C-KQ2H12-00 20.9 44.5 22 58.3 46.1 14
    Ø16 C-KQ2H16-00 26.5 51 25 113 (96) 24
    Ø4 Ø6 C-KQ2H04-06 12.8 34.5 16 17 5.6 5.6 5
    Ø6 Ø8 C-KQ2H06-08 15.2 38.5 17 18.5 13.1 10.4 6
    Ø8 Ø10 C-KQ2H08-10 18.5 42 18.5 21 26.1 18.0 11
    Ø10 Ø12 C-KQ2H10-12 20.9 44.5 21 22 41.5 29.5 14
    Ø12 Ø16 C-KQ2H12-16 26.5 56.5 22 25 58.3 46.1 47


    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M
    Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane

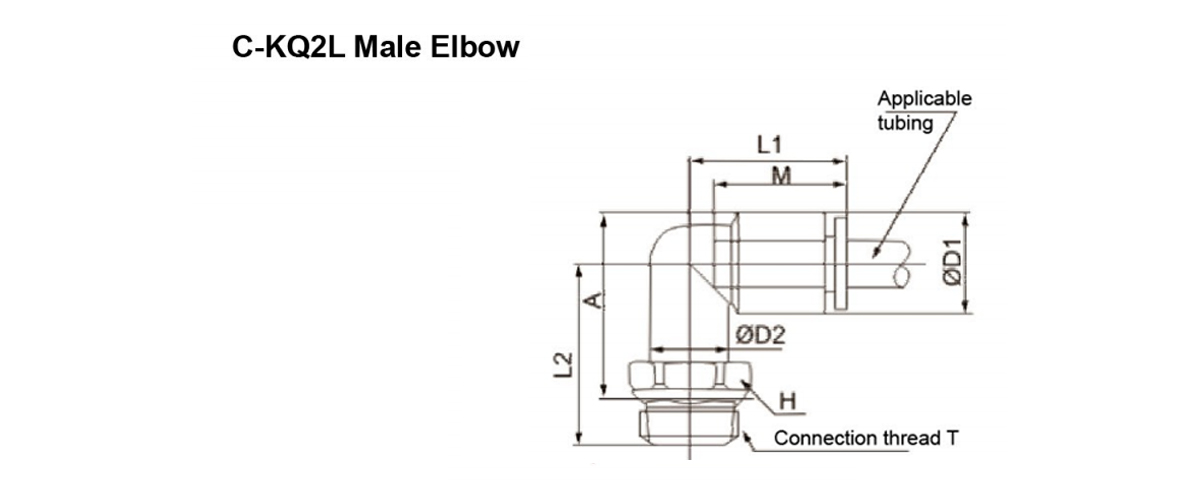

    Ø4 C-KQ2L04-01S 1/8 10 10.4 10 18 22 23 16 4.2 4.2 10
    C-KQ2L04-02S 1/4 14 26 25 19
    Ø6 C-KQ2L06-01S 1/8 10 12.8 10 20 23 25.5 17 11.4 9.0 12
    C-KQ2L06-02S 1/4 14 27 27.5 22
    C-KQ2L06-03S 3/8 17 29 29 33
    Ø8 C-KQ2L08-01S 1/8 12 15.2 12 23 24.5 28 18.5 21.6 14.9 13
    C-KQ2L08-02S 1/4 14 28.5 30 21
    C-KQ2L08-03S 3/8 17 30.5 31.5 35
    Ø10 C-KQ2L10-01S 1/8 17 18.5 17 26.5 27 32 21 21.6 14.9 25
    C-KQ2L10-02S 1/4 30 33 35.2 25.0 26
    C-KQ2L10-03S 3/8 32 34.5 36
    C-KQ2L10-04S 1/2 22 36 37 63
    Ø12 C-KQ2L12-02S 1/4 17 20.9 17 28.5 31 35.5 22 50.2 39.7 28
    C-KQ2L12-03S 3/8 33 37 38
    C-KQ2L12-04S 1/2 22 37 39.5 65
    Ø16 C-KQ2L16-03S 3/8 22 26.5 20.9 34 38 44.5 25 71 (71) 101
    C-KQ2L16-04S 1/2 41 46 100 (84) 105

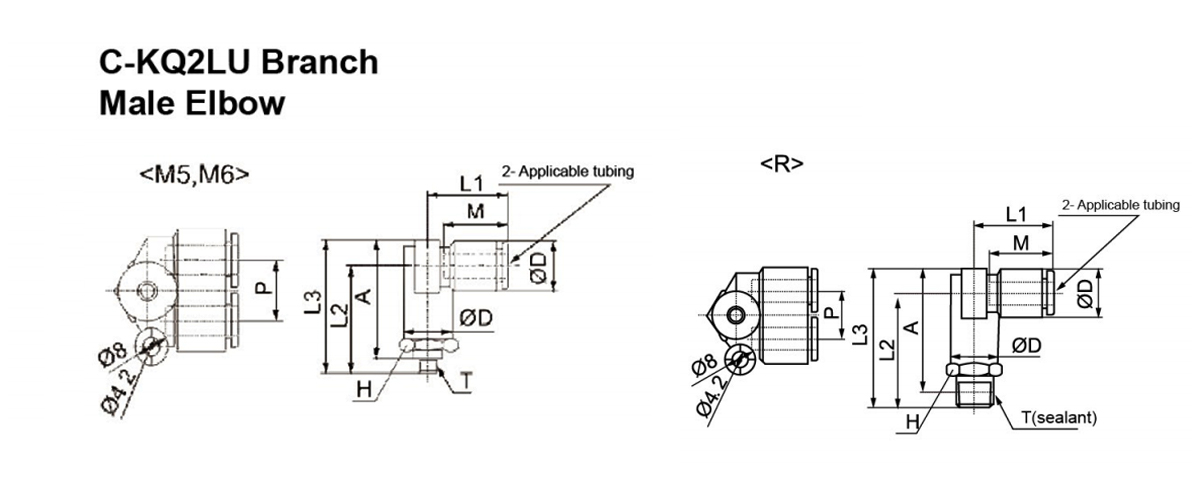

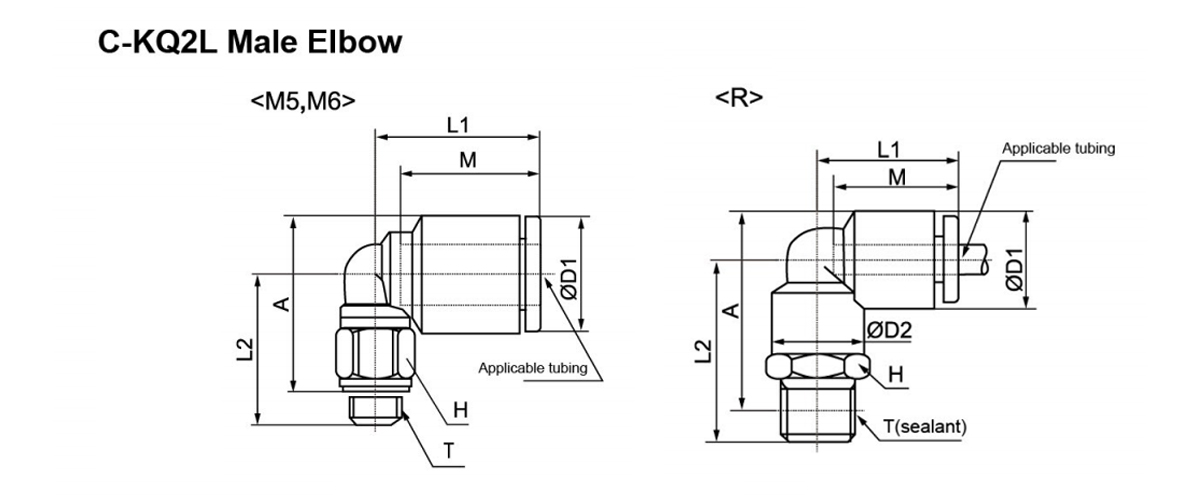

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L1 L2 L3 A M P Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

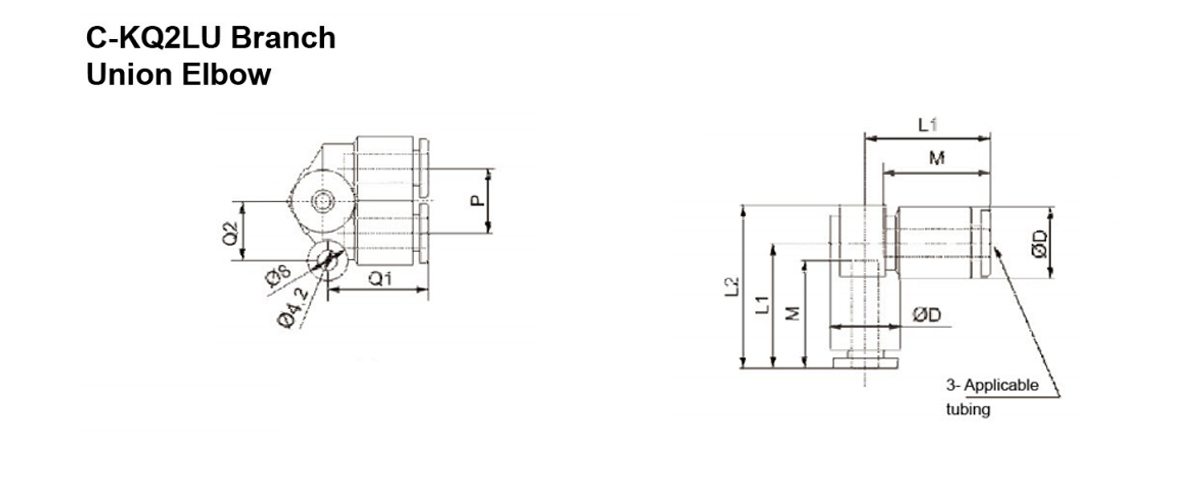

    Ø4 C-KQ2LU04-M5 M5×0.8 11 10.4 18.5 24 29.5 25.5 16 10.4 4.3 4.1 10
    C-KQ2LU04-M6 M6×1.0 24.5 30
    C-KQ2LU04-01S 1/8 26.5 32 27.5 6.0 4.1 12
    C-KQ2LU04-02S 1/4 14 30.5 36 30 21
    Ø6 C-KQ2LU06-M5 M5×0.8 13 12.8 21 26.5 33 29.5 17 12.8 4.3 4.3 13
    C-KQ2LU06-M6 M6×1.0 27 33.5
    C-KQ2LU06-01S 1/8 29.5 36 32 13.9 11.0 15
    C-KQ2LU06-02S 1/4 14 33 39.5 33.5 22
    C-KQ2LU06-03S 3/8 17 35 41.5 35 35
    Ø8 C-KQ2LU08-01S 1/8 17 15.2 24 34 41.5 38 18.5 15.2 26.3 18.2 27
    C-KQ2LU08-02S 1/4 37 44.5 38.5
    C-KQ2LU08-03S 3/8 38 45.5 39 35
    Ø10 C-KQ2LU10-02S 1/4 19 18.5 27 40 49.5 43.5 21 18.5 40.8 29.0 41
    C-KQ2LU10-03S 3/8 41 50.5 44 42
    C-KQ2LU10-04S 1/2 22 44.5 54 45.5 64
    Ø12 C-KQ2LU12-02S 1/4 22 20.9 29 42.5 53 47 22 20.9 57.2 45.2 57
    C-KQ2LU12-03S 3/8 43.5 54 47.5 58
    C-KQ2LU12-04S 1/2 46.5 57 49 65


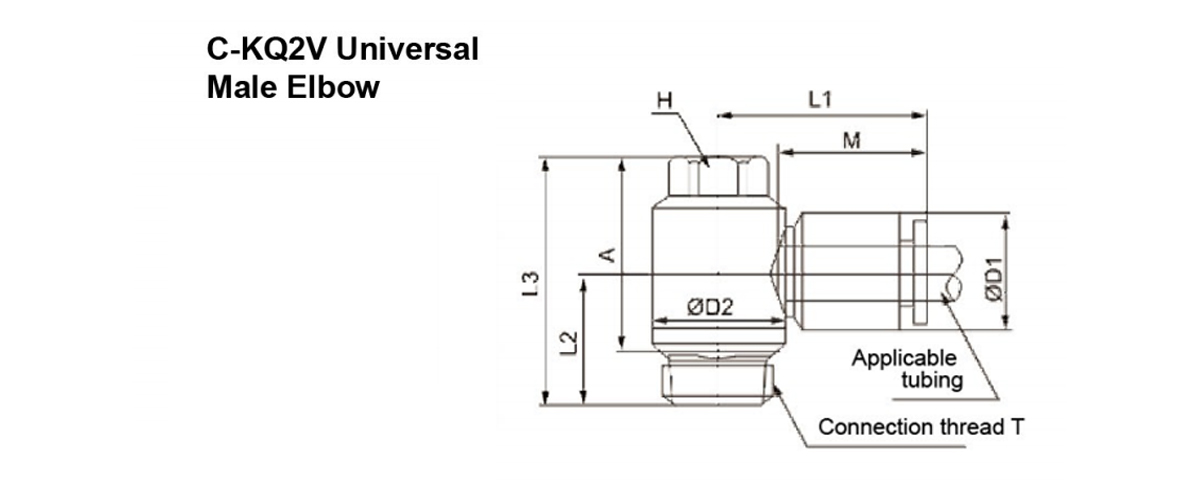

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M Effective Area
    (mm²)
    Weight
    ( g)
    Nylon Urethane

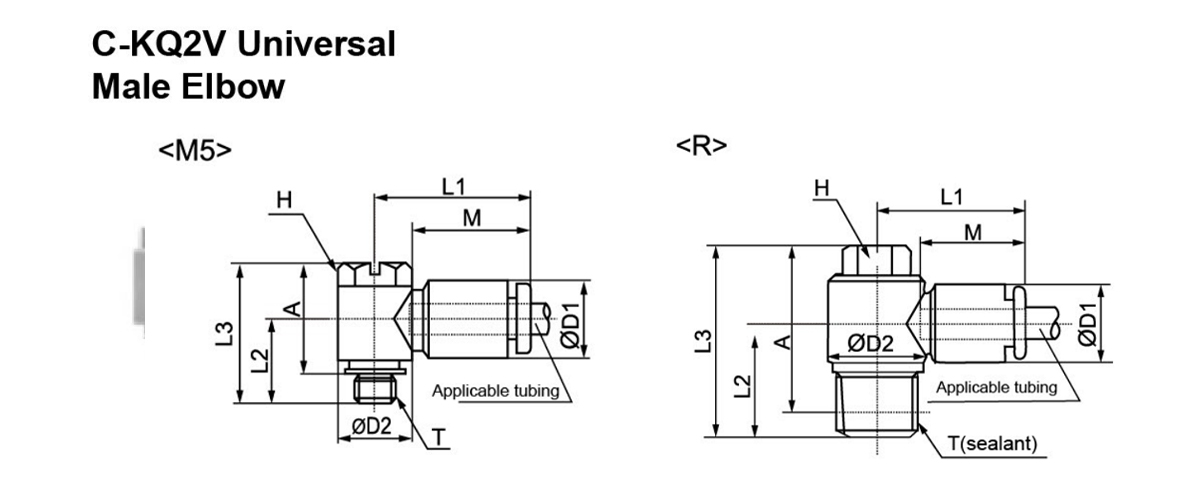

    Ø4 C-KQ2V04-M5 M5×0.8 8 10.4 9.8 20.5 11 18.5 15 16 2.9 2.9 6
    C-KQ2V04-01S 1/8 13.4 22 14.5 26.5 22.5 14
    Ø6 C-LQ2V06-M5 M5×0.8 8 12.8 9.8 23.5 12 18.5 15 17 3.8 3.8 7
    C-KQ2V06-01S 1/8 13.4 24 14.5 26.5 22.5 7.5 5.9 15
    C-KQ2V06-02S 1/4 10 15.4 23.5 18.5 31 25 26
    Ø8 C-KQ2V08-01S 1/8 12 15.2 17.6 28.5 15.5 28.5 24.5 18.5 16 11.2 24
    C-KQ2V08-02S 1/4 18.5 31.5 25.5 30
    C-KQ2V08-03S 3/8 14 20.6 27.5 20.5 36.5 30 20.5 14.3 47
    Ø10 C-KQ2V10-02S 1/4 14 18.5 20.6 31 195 35.5 29.5 21 27 20.3 40
    C-KQ2V10-03S 3/8 20.5 36.5 30 49
    Ø12 C-KQ2V12-03S 3/8 17 20.9 25.2 34 22 38.5 32 22 39 30.8 63
    C-KQ2V12-04S 1/2 25 41.5 33.5 80

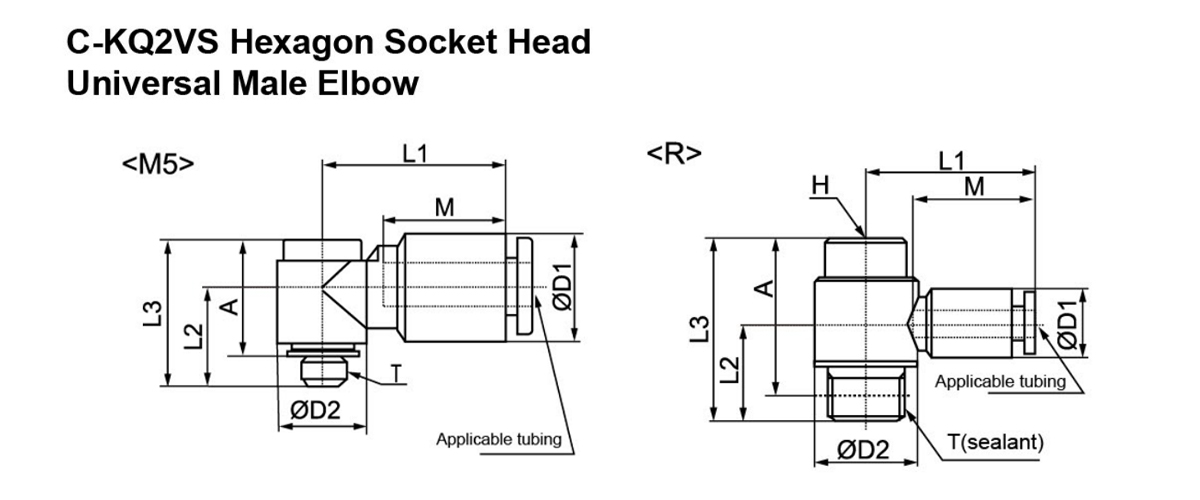

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T
    H
    Width
    across
    flats     		ØD1 ØD2 L1 L2 L3 A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2VS04-M5 M5 4 10.4 9.8 20.5 10.5 18 15 16 2.9 2.9 6
    C-KQ2VS04-01S 1/8 6 13.4 22 14.5 26.5 22.5 14
    Ø6 C-KQ2VS06-M5 M5 4 12.8 9.8 23.5 12 18 15 17 3.8 3.8 7
    C-KQ2VS06-01S 1/8 6 13.4 24 14.5 26.5 22.5 7.5 5.9 15
    C-KQ2VS06-02S 1/4 15.3 23.5 18.5 27 21 22
    Ø8 C-KQ2VS08-01S 1/8 8 15.2 17.6 28.5 15.5 27 23 18.5 16 11.2 24
    C-KQ2VS08-02S 1/4 18.5 30 24 30
    C-KQ2VS08-03S 3/8 20.6 27.5 20.5 32.5 26 20.5 14.3 47
    Ø10 C-KQ2VS10-02S 1/4 8 18.5 20.6 31 19.5 31.5 25 21 27 20.3 32
    C-KQ2VS10-03S 3/8 20.5 32.5 26 39
    Ø12 C-KQ2VS12-03S 3/8 10 20.9 25.2 34 22 36 30 22 39 30.8 48
    C-KQ2VS12-04S 1/2 25 39 31 67

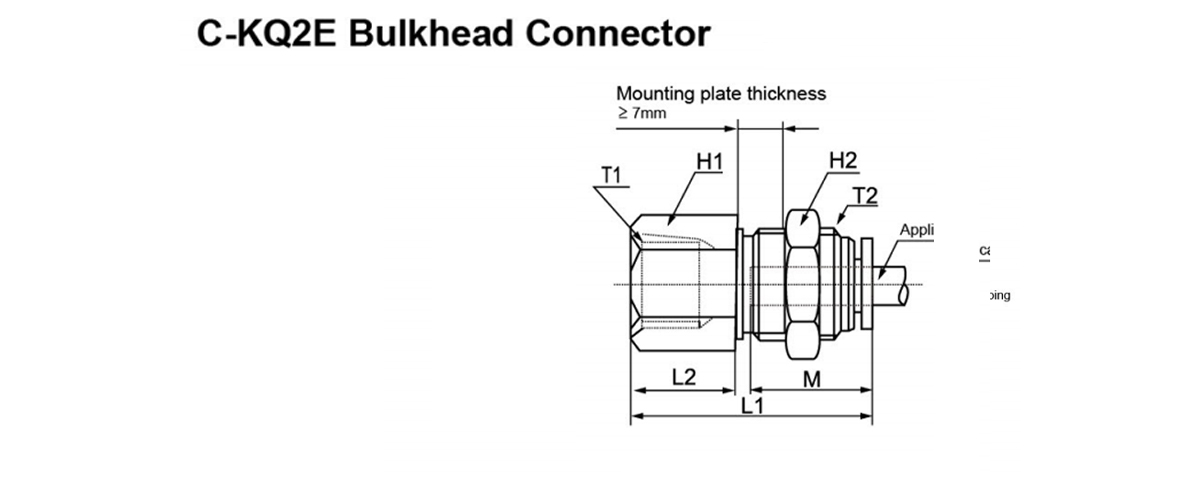

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T1 Mounting
    Thread
    T2     		H1
    Width
    Across
    Flats     		H2
    Width

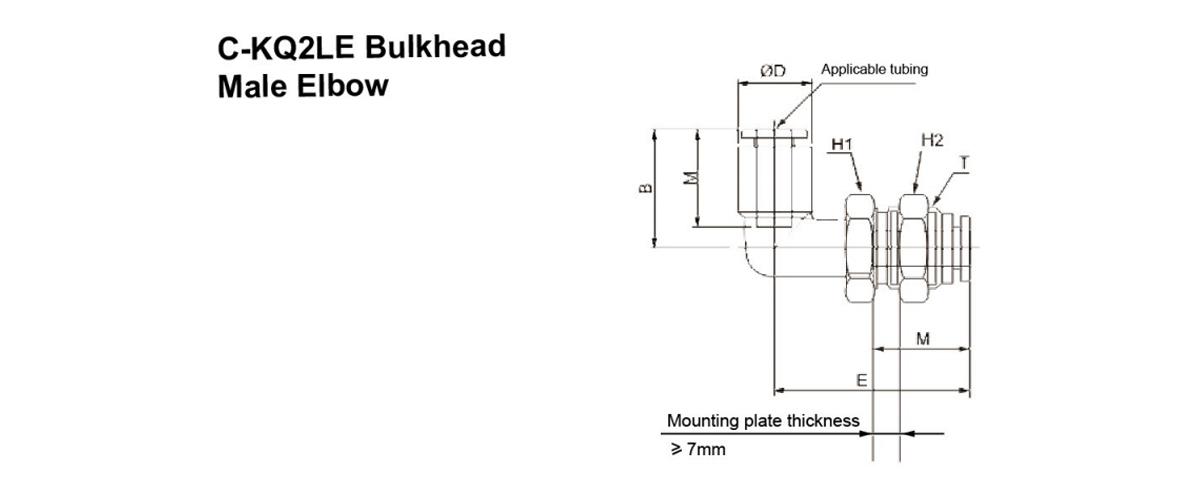

    Across
    Flats     		L1 L2 Mount-
    ing Hole     		M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

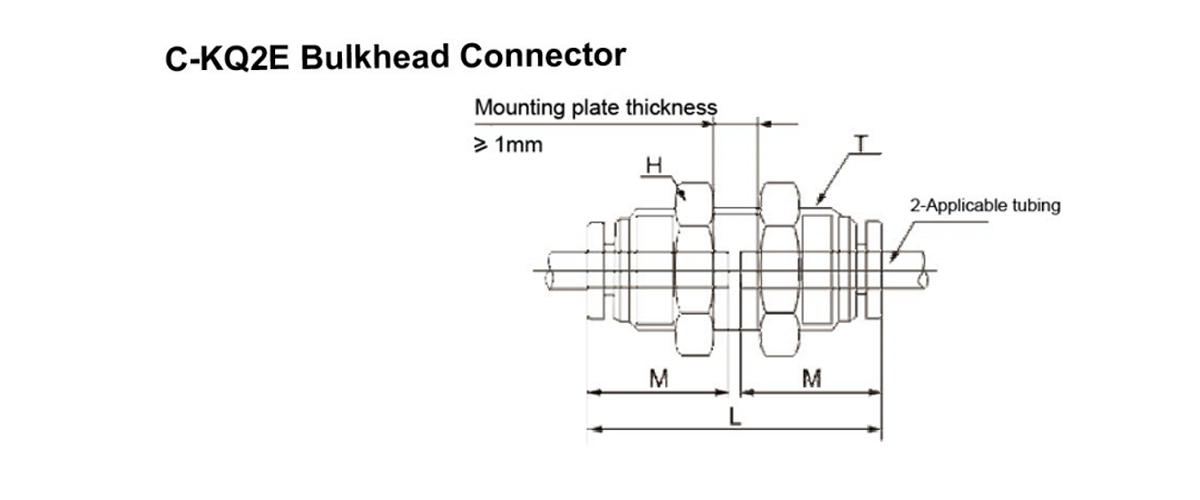

    Ø4 C-KQ2E04-01 1/8 M12×1 14 14 27.5 11 13 16 5.6 4 16
    C-KQ2E04-02 1/4 17 31 15 35
    Ø6 C-KQ2E06-01 1/8 M14×1 17 17 28 11 15 17 13.1 10.4 25
    C-KQ2E06-02 1/4 31.5 15 40
    C-KQ2E06-03 3/8 19 33.5 17 29
    Ø8 C-KQ2E08-01 1/8 M16×1 17 19 27.5 7.5 17 18.5 26.1 18.0 28
    C-KQ2E08-02 1/4 33 13 27
    C-KQ2E10-02 3/8 19 35 15 48
    Ø10 C-KQ2E10-02 1/4 M20×1 22 24 34.5 12.5 21 21 41.5 29.5 53
    C-KQ2E10-03 3/8 22 36.5 15 67
    Ø12 C-KQ2E12-03 3/8 M22×1 24 27 37 14 23 22 58.3 46.1 92
    C-KQ2E12-04 1/2 41 18 59
    Ø16 C-KQ2E16-03 3/8 M28×1.5 30 32 40 14 29 25 96 (96) 127
    C-KQ2E16-04 1/2 44 18 113 132


    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M Weight
    (g)

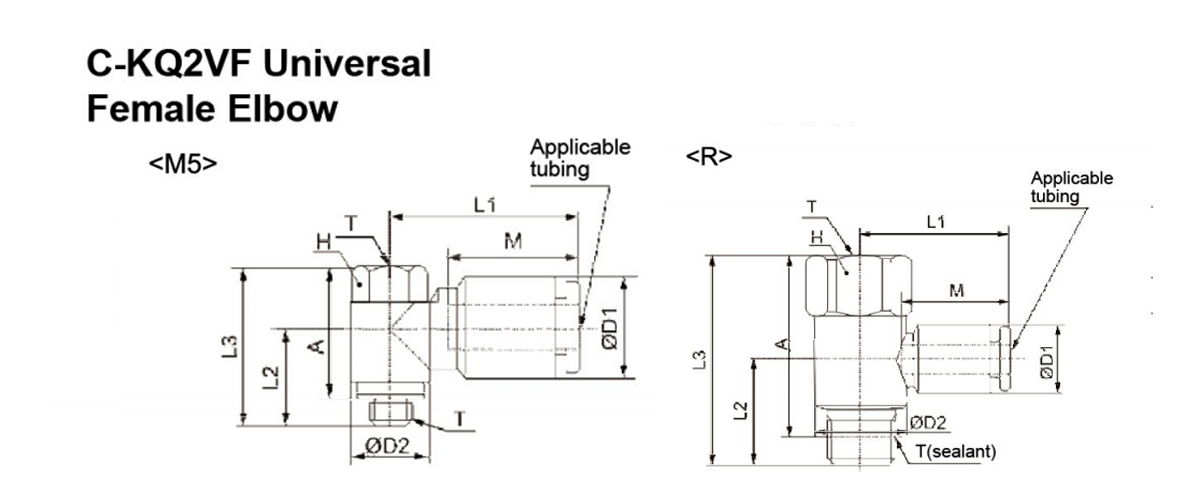

    Ø4 C-KQ2VF04-M5 M5×0.8 8 10.4 9.8 20.5 11 20 16 16 6
    C-KQ2VF04-01S 1/8 14 13.4 22 15.5 29.5 25.5 19
    Ø6 C-KQ2VF-06-M5 M5×0.8 8 12.8 9.8 23.5 12.5 20 16 17 7
    C-KQ2VF06-01S 1/8 14 13.4 24.5 15.5 29.5 25.5 19
    C-KQ2VF06-02S 1/4 17 17.6 25 20 38.5 32.5 36
    Ø8 C-KQ2VF08-01S 1/8 17 15.2 17.6 28.5 17 31 27 18.5 29
    C-KQ2VF08-02S 1/4 20 38.5 32.5 37
    C-KQ2VF08-03S 3/8 22 25.2 29.5 25.5 45.5 39 66
    Ø10 C-KQ2VF10-02S 1/4 19 18.5 20.6 31.5 22 41 35 21 48
    C-KQ2VF10-03S 3/8 22 25.2 24.5 45.5 39 68
    Ø12 C-KQ2VF12-03S 3/8 22 20.9 25.2 34 24.5 45.5 39 22 70

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane

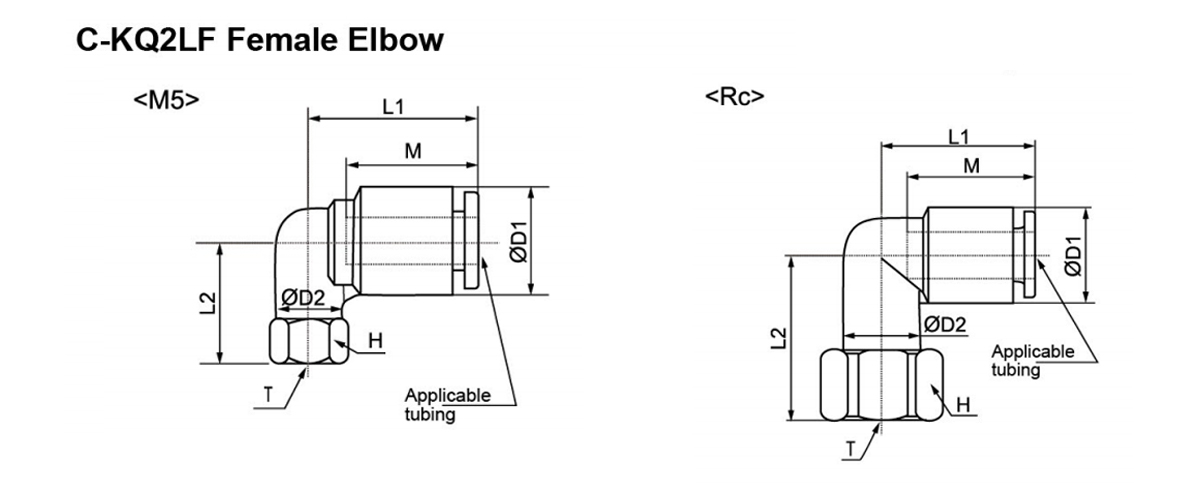

    Ø4 C-KQ2LF04-M5 M5×0.8 8 10.4 8 18.5 14.5 16 3.5 3.5 5
    C-KQ2LF04-M6 M6×1.0 15.5
    C-KQ2LF04-01 1/8 14 10 21 4.2 4.2 13
    C-KQ2LF04-02 1/4 17 24.5 20
    Ø6 C-KQ2LF06-M5 M5×0.8 8 12.8 8 20.5 15 17 3.5 3.5 5
    C-KQ2LF06-M6 M6×1.0 16 6
    C-KQ2LF06-01 1/8 14 10 22 11.4 9.0 13
    C-KQ2LF06-02 1/4 17 25.5 20
    C-KQ2LF06-03 3/8 19 26
    Ø8 C-KQ2LF08-01 1/8 14 15.2 12 23.5 23 18.5 21.6 14.9 16
    C-KQ2LF08-02 1/4 17 26.5 22
    C-KQ2LF08-03 3/8 19 27 23
    Ø10 C-KQ2LF10-02 1/4 17 18.5 17 26.5 28 21 21.6 14.9 27
    C-KQ2LF10-03 3/8 19 28.5 35.2 25.0
    C-KQ2LF10-04 1/2 24 32.5 46
    Ø12 C-KQ2LF12-02 1/4 17 20.9 17 28.5 29.5 22 50.2 39.7 29
    C-KQ2LF12-03 3/8 19 30
    C-KQ2LF12-04 1/2 24 34 48


    Applicable Tubing O.D
    (mm)     		Model
    Connection Thread T     		H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P
    Weight
    (g)

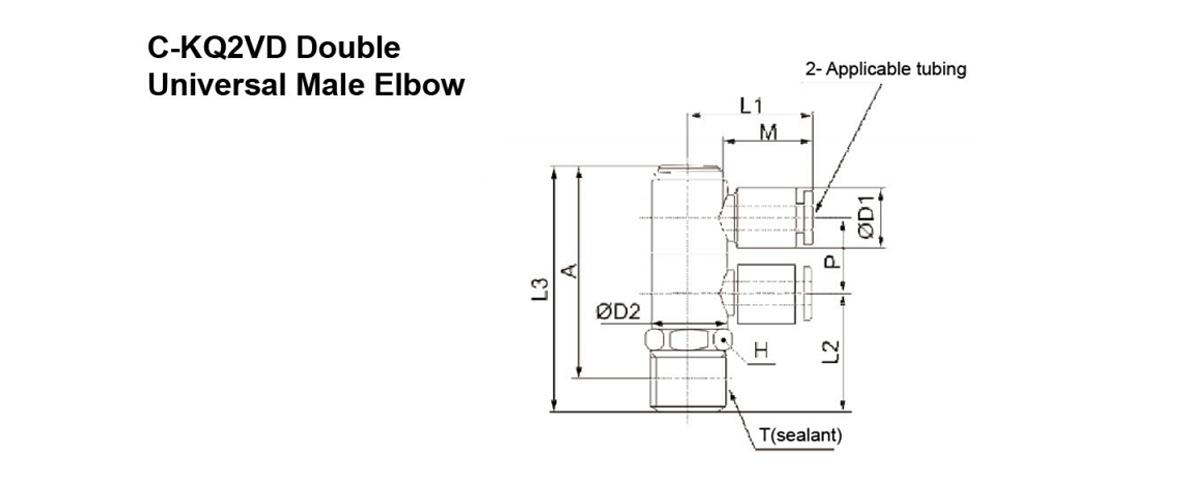

    Ø4 C-KQ2VD04-01S 1/8 14 10.4 13.4 22 18.5 41 37 16 13.4 23
    C-KQ2VD04-02S 1/4 21.5 44 38 29
    C-KQ2VD04-03S 3/8 17 23.5 46 40 42
    Ø6 C-KQ2VD06-01S 1/8 14 12.8 13.4 24.5 18.5 41 37 17 13.4 24
    C-KQ2VD06-02S 1/4 21.5 44 38 30
    C-KQ2VD06-03S 3/8 17 23.5 46 40 42
    Ø8 C-KQ2VD08-01S 1/8 19 15.2 17.6 28.5 21 48 44 18.5 15.9 53
    C-KQ2VD08-02S 1/4 24 51 45 51
    C-KQ2VD08-03S 3/8 25 52 45.5 60
    C-KQ2VD08-04S 1/2 21 28.5 55.5 47.5 82
    Ø10 C-KQ2VD10-02S 1/4 21 18.5 20.6 31.5 26.5 58 52 21 19.2 71
    C-KQ2VD10-03S 3/8 27.5 59 53 74
    C-KQ2VD10-04S 1/2 30.5 62 54 91
    Ø12 C-KQ2VD12-02S 1/4 26 20.9 25.2 34 28.5 64.5 58.5 21 21.6 118
    C-KQ2VD12-03S 3/8 29.5 65.5 59 113
    C-KQ2VD12-04S 1/2 32.5 68.5 60 125


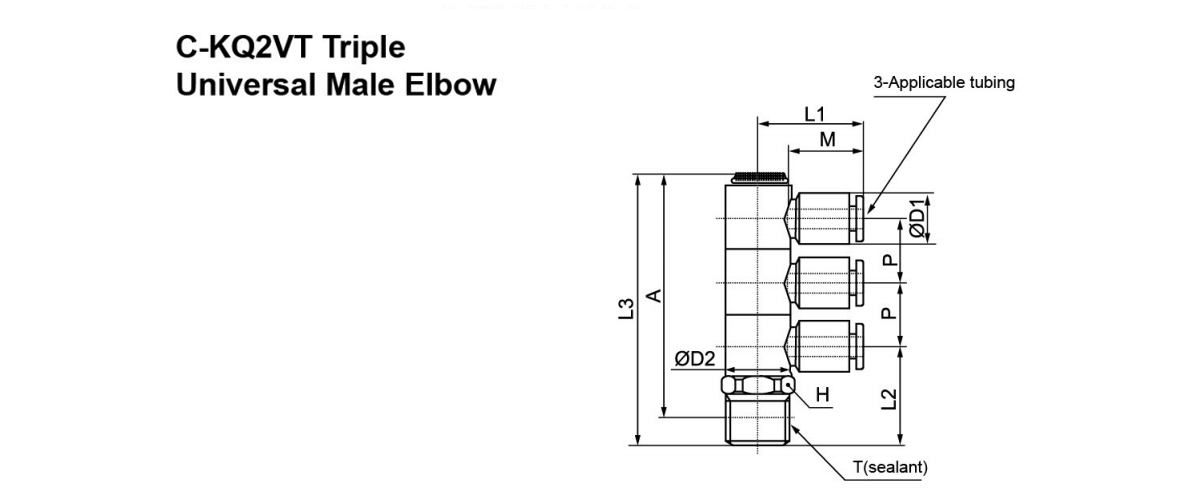

    Applicable Tubing O.D
    (mm)     		Model Connection Thread
    T     		H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P Weight
    (g)
    Ø4 C-KQ2VT04-01S 1/8 14 10.4 13.4 22 18.5 54.5 50.5 16 13.4 29
    C-KQ2VT04-02S 1/4 21.5 57.5 51.5 34
    C-KQ2VT04-03S 3/8 17 23.5 59.5 53.5 48
    Ø6 C-KQ2VT06-01S 1/8 14 12.8 13.4 24.5 18.5 54.5 50.5 17 13.4 31
    C-KQ2VT06-02S 1/4 21.5 57.5 51.5 37
    C-KQ2VT06-03S 3/8 17 23.5 59.5 53.5 50
    Ø8 C-KQ2VT08-01S 1/8 19 15.2 17.6 28.5 21 64 60 18.5 15.9 71
    C-KQ2VT08-02S 1/4 24 67 61 66
    C-KQ2VT08-03S 3/8 25 68 61.5 75
    C-KQ2VT08-04S 1/2 21 28.5 71.5 63.5 96
    Ø10 C-KQ2VT10-02S 1/4 21 18.5 20.6 31.5 26.5 77.5 71.5 21 19.2 94
    C-KQ2VT10-03S 3/8 27.5 78.5 72
    C-KQ2VT10-04S 1/2 30.5 81.5 73.5 111
    Ø12 C-KQ2VT12-02S 1/4 26 20.9 25.2 34 28.5 86 80 21 21.6 153
    C-KQ2VT12-03S 3/8 29.5 87 80.5 143
    C-KQ2VT12-04S 1/2 32.5 90 82 154

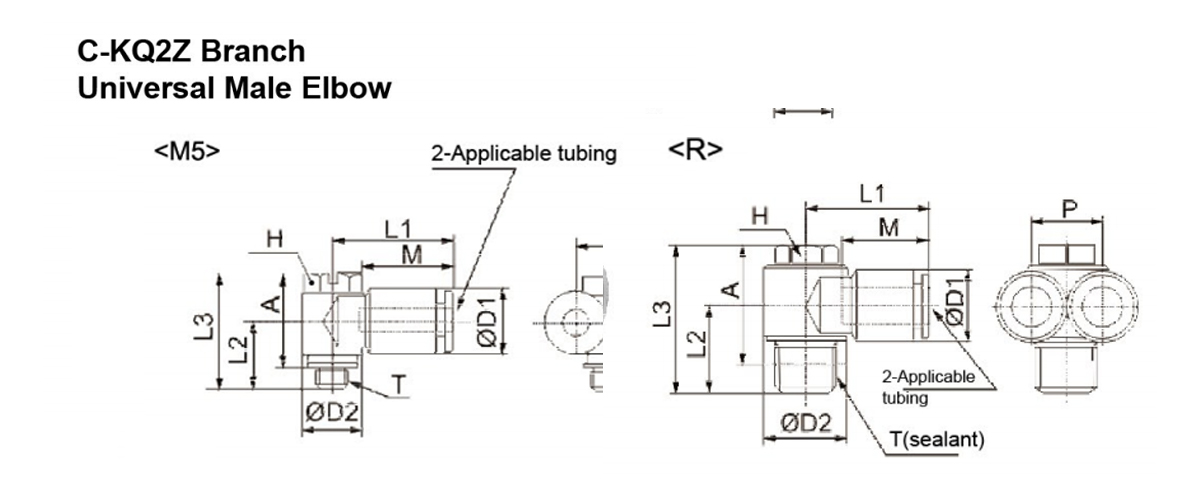

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2Z04-M5 M5×0.8 8 10.4 9.8 19.5 11 18.5 15 16 10.4 3.4 3.4 8
    C-KQ2Z04-01S 1/8 13.4 21 14.5 26.5 22.5 4.7 4.7 16
    Ø6 C-ZQ2Z06-01S 1/8 8 12.8 13.4 22 14.5 26.5 22.5 17 12.8 10.8 8.6 17
    C-ZQ2Z06-02S 1/4 14 20.6 25.5 19.5 35.5 29.5 39
    C-ZQ2Z06-03S 3/8 20.5 36.5 30 47
    Ø8 C-KQ2Z08-01S 1/8 12 15.2 17.6 26 15.5 28.5 24.5 18.5 15.2 20.5 14.2 27
    C-KQ2Z08-02S 1/4 18.5 31.5 25.5 33
    C-KQ2Z08-03S 3/8 14 20.6 27 20.5 36.5 30 49
    Ø10 C-KQ2Z10-02S 1/4 14 18.5 20.6 29 19.5 35.5 29.5 21 18.5 31.8 22.6 46
    C-KQ2Z10-03S 3/8 20.5 36.5 30 54
    Ø12 C-KQ2Z12-02S 3/8 17 20.9 25.2 32.5 22 39 32.5 22 20.9 44.6 35.3 71
    C-KQ2Z12-04S 1/2 25 42 34 88

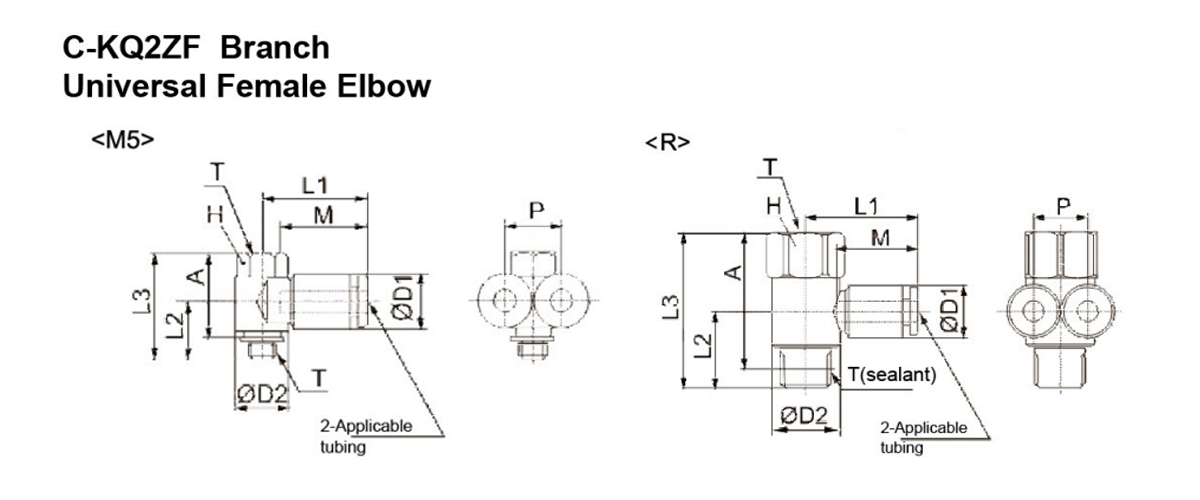

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P Weight
    (g)
    Ø4 C-KQ2ZF04-M5 M5×0.8 8 10.4 9.8 19.5 11 20 16.5 16 10.4 8
    C-KQ2ZF04-01S 1/8 14 13.4 21 15.5 29.5 25.5 21
    Ø6 C-KQ2ZF06-01S 1/8 14 12.8 13.4 22 15.5 29.5 25.5 17 12.8 21
    C-KQ2ZF06-02S 1/4 19 20.6 25.5 22 41 35 47
    Ø8 C-KQ2ZF08-01S 1/8 17 15.2 17.6 25.5 17 31 27 18.5 15.2 32
    C-KQ2ZF08-02S 1/4 19 20.6 27 22 41 35 49
    Ø10 C-KQ2ZF10-02S 1/4 19 18.5 20.6 29 22 41 35 21 18.5 54
    C-KQ2ZF10-03S 3/8 22 25.2 31.5 24.5 45.5 39 74
    Ø12 C-KQ2ZF12-03S 3/8 22 20.9 25.2 32.5 24.5 45.5 39 22 20.9 77


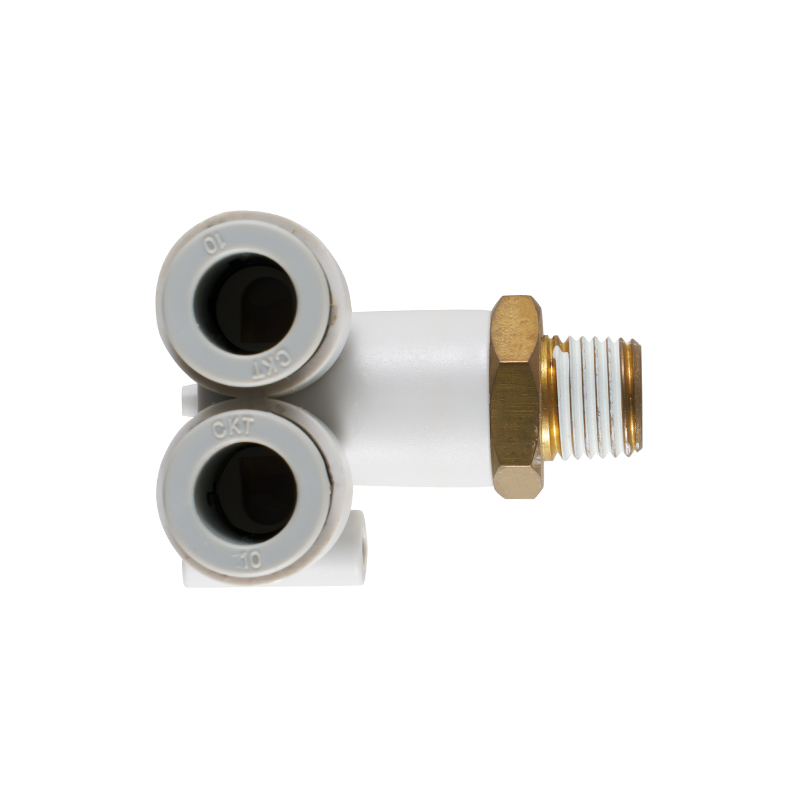

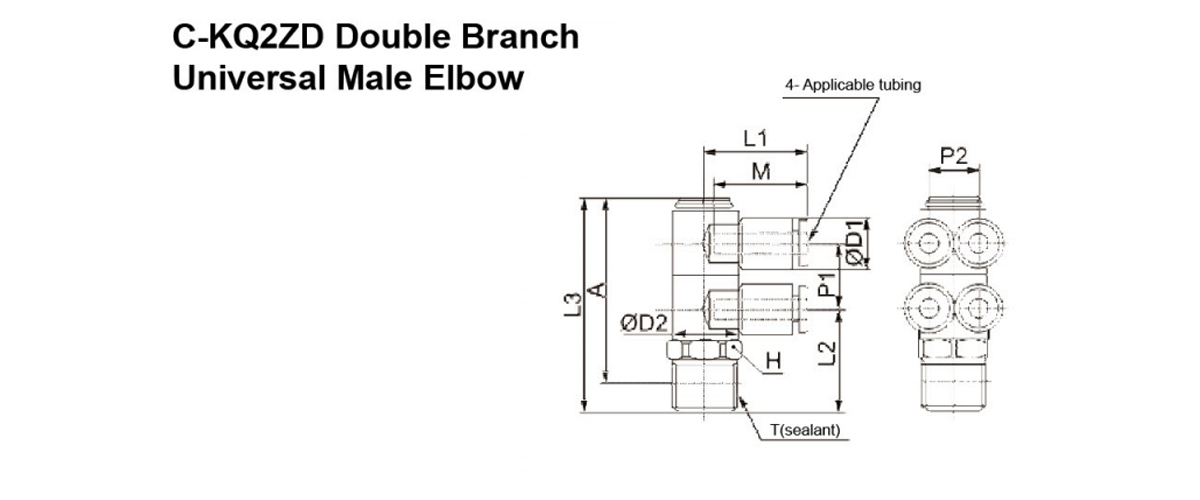

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P1 P2 Weight
    (g)
    Ø4 C-KQ2ZD04-01S 1/8 14 10.4 13.4 21 18.5 41 37 16 13.4 10.4 34
    C-KQ2ZD04-02S 1/4 21.5 44 38 40
    C-KQ2ZD04-03S 3/8 17 23.5 46 40 53
    Ø6 C-KQ2ZD06-01S 1/8 14 12.8 13.4 22 18.5 41 37 17 13.4 12.8 38
    C-KQ2ZD06-02S 1/4 21.5 44 38 43
    C-KQ2ZD06-03S 3/8 17 23.5 46 40 57
    Ø8 C-KQ2ZD08-01S 1/8 19 15.2 17.6 26 21 48 44 18.5 15.9 15.2 76
    C-KQ2ZD08-02S 1/4 24 51 45 72
    C-KQ2ZD08-03S 3/8 25 52 45.5 81
    C-KQ2ZD08-04S 1/2 21 28.5 55.5 47.5 102
    Ø10 C-KQ2ZD10-02S 1/4 21 18.5 20.6 29 26.5 58 52 21 19.2 18.5 111
    C-KQ2ZD10-03S 3/8 27.5 59 53
    C-KQ2ZD10-04S 1/2 30.5 62 54 128
    Ø12 C-KQ2ZD12-02S 1/4 26 20.9 25.2 32 28.5 64.5 58.5 22 21.6 20.9 178
    C-KQ2ZD12-03S 3/8 29.5 65.5 59 167
    C-KQ2ZD¹2-04S 1/2 32.5 68.5 60 179


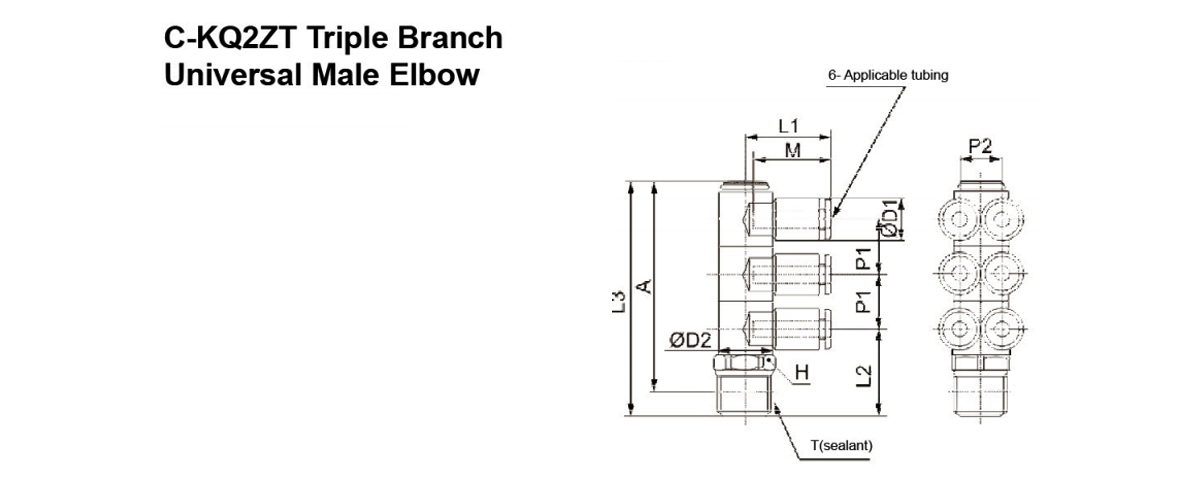

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M P1 P2
    Weight
    (g)
    Ø4 C-KQ2ZT04-01S 1/8 14 10.4 13.4 21 18.5 54.5 50.5 16 13.4 10.4 25
    C-KQ2ZT04-02S 1/4 21.5 57.5 51.5 31
    C-KQ2ZT04-03S 3/8 17 23.5 59.5 53.5 44
    Ø6 C-KQ2ZT06-01S 1/8 14 12.8 13.4 22 18.5 54.5 50.5 17 13.4 12.8 27
    C-KQ2ZT06-02S 1/4 21.5 57.5 51.5 33
    C-KQ2ZT06-03S 3/8 17 23.5 59.5 53.5 46
    Ø8 C-KQ2ZT08-01S 1/8 19 15.2 17.6 26 21 64 60 18.5 15.9 15.2 56
    C-KQ2ZT08-02S 1/4 24 67 61 54
    C-KQ2ZT08-03S 3/8 25 68 61.5 62
    C-KQ2ZT08-04S 1/2 21 28.5 71.5 63.5 85
    Ø10 C-KQ2ZT10-02S 1/4 21 18.5 20.6 29 26.5 77.5 71.5 21 19.2 18.5 83
    C-KQ2ZT10-03S 3/8 27.5 78.5 72 85
    C-KQ2ZT10-04S 1/2 30.5 81.5 73.5 102
    Ø12 C-KQ2ZT12-02S 1/4 26 20.9 25.2 32 28.5 86 80 22 21.6 20.9 134
    C-KQ2ZT12-03S 3/8 29.5 87 80.5 130
    C-KQ2ZT12-04S 1/2 32.5 90 82 141

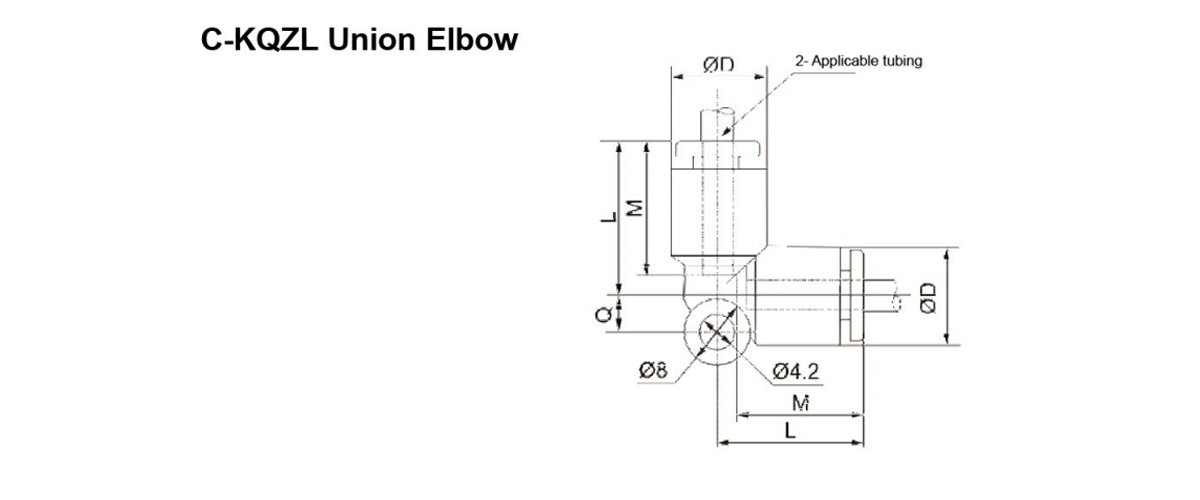

    Applicable Tubing O.D
    (mm)     		Model ØD L Q M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2L04-00 10.4 18 4.5 16 4.2 4.2 6
    Ø6 C-KQ2L06-00 12.8 20 5.3 17 11.4 9.0 6
    Ø8 C-KQ2L08-00 15.2 23 6 18.5 21.6 14.9 10
    Ø10 C-KQ2L10-00 18.5 26.5 6.8 21 35.2 25.0 17
    Ø12 C-KQ2L12-00 20.9 28.5 7.5 22 50.2 39.7 21
    Ø16 C-KQ2L16-00 26.5 34 10 25 100 (84) 29

    Applicable Tubing O.D
    (mm)     		Model ØD L1 L2 Q1 Q2 M p Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2LU04-00 10.4 18.5 24 18.5 10 16 10.4 6.0 4.1 6
    Ø6 C-KQ2LU06-00 12.8 21 27.5 20.5 12 17 12.8 13.9 11.0 8
    Ø8 C-KQ2LU08-00 15.2 24 32 24.5 14 18.5 15.2 26.3 18.2 15
    Ø10 C-KQ2LU10-00 18.5 27 36.5 28 16 21 18.5 40.8 29.0 25
    Ø12 C-KQ2LU12-00 20.9 29 40 30 18 22 20.9 57.2 45.2 32

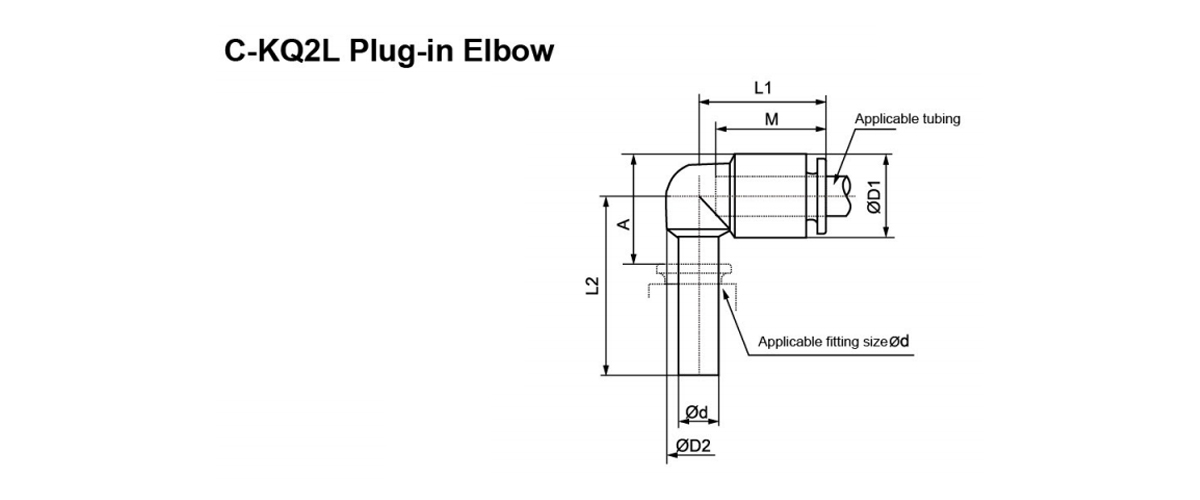

    Applicable Tubing O.D
    (mm)     		Applicable Fitting Size
    od     		Model ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 Ø4 C-KQ2L04-99 10.4 8 18 25 14.5 16 4.2 4.2 3
    Ø6 Ø6 C-KQ2L06-99 12.8 10 20 27.5 17 17 11.4 9.0 3
    Ø8 Ø8 C-KQ2L08-99 15.2 12 22.5 31.5 21 18.5 21.6 14.9 5
    Ø10 Ø10 C-KQ2L10-99 18.5 14 25.5 35.5 23.5 21 35.2 25.0 9
    Ø12 Ø12 C-KQ2L12-99 20.9 16 27 37.5 26 22 50.2 39.7 10
    Ø16 Ø16 C-KQ2L16-99 26.5 20.9 34 53 41 25 100 (84) 42

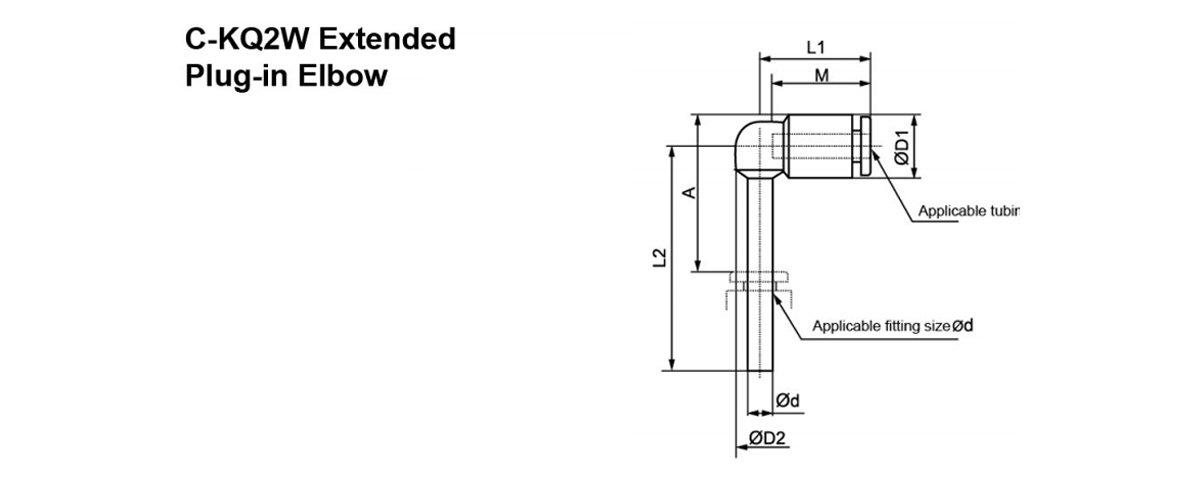

    Applicable
    Tubing O.D
    (mm)
    Applicable Fitting Size
    od     		Model ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 Ø4 C-KQ2W04-99 10.4 10 18.1 32.1 21.5 16 4.2 4.2 13
    Ø6 Ø6 C-KQ2W06-99 12.8 10 20 34.5 24 17 11.4 9.0 14
    Ø8 Ø8 C-KQ2W08-99 15.2 12 23.1 39.5 29 18.5 21.6 14.9 16
    Ø10 Ø10 C-KQ2W10-99 18.5 17 26.6 45.5 33.5 21 35.2 25.0 19
    Ø12 Ø12 C-KQ2W12-99 20.9 17 28.6 47.5 36 22 50.2 39.7 23

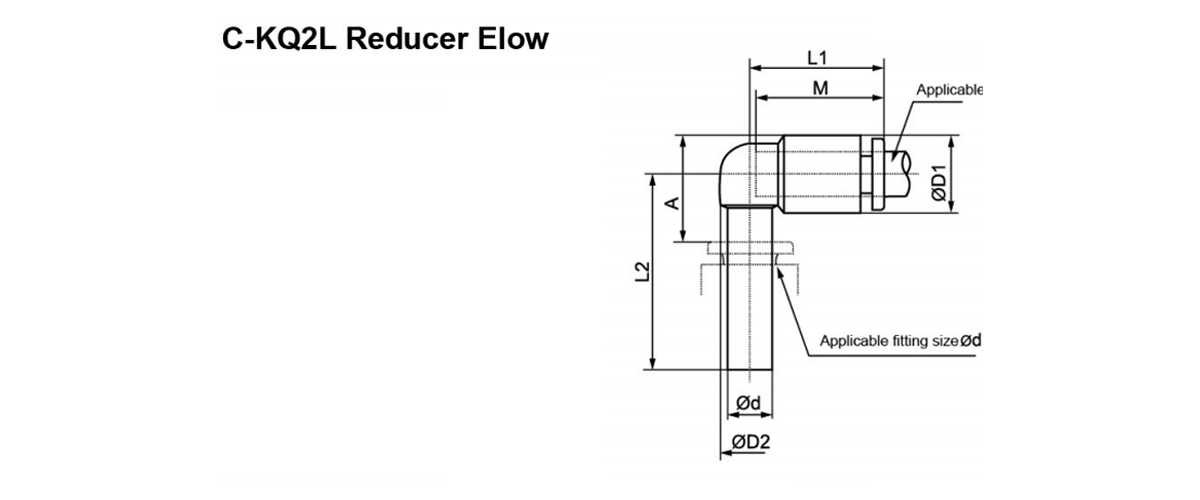

    Applicable Tubing O.D
    (mm)     		Applicable Fitting Size
    od     		Model ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 Ø6 C-KQ2L04-06(99) 10.4 8 18 33 21.5 16 4.2 4.2 13
    Ø8 C-KQ2L04-08(99) 10 42 29 21
    Ø6 Ø8 C-KQ2L06-08(99) 12.8 10 19.5 37.5 25 17 11.4 9.0 22
    Ø10 C-KQ2L06-10(99) 20 45.5 31 29
    Ø8 Ø10 C-KQ2L08-10(99) 15.2 12 22.5 41.5 28.5 18.5 21.6 14.9 30
    Ø12 C-KQ2L08-12(99) 23 48.5 34 37
    Ø10 Ø12 C-KQ2L10-12(99) 18.5 17 26.5 52 39.5 21 35.2 25.0 39
    Ø12 Ø16 C-KQ2L12-16(99) 20.9 17 28.5 59.5 44.5 22 50.2 39.7 63


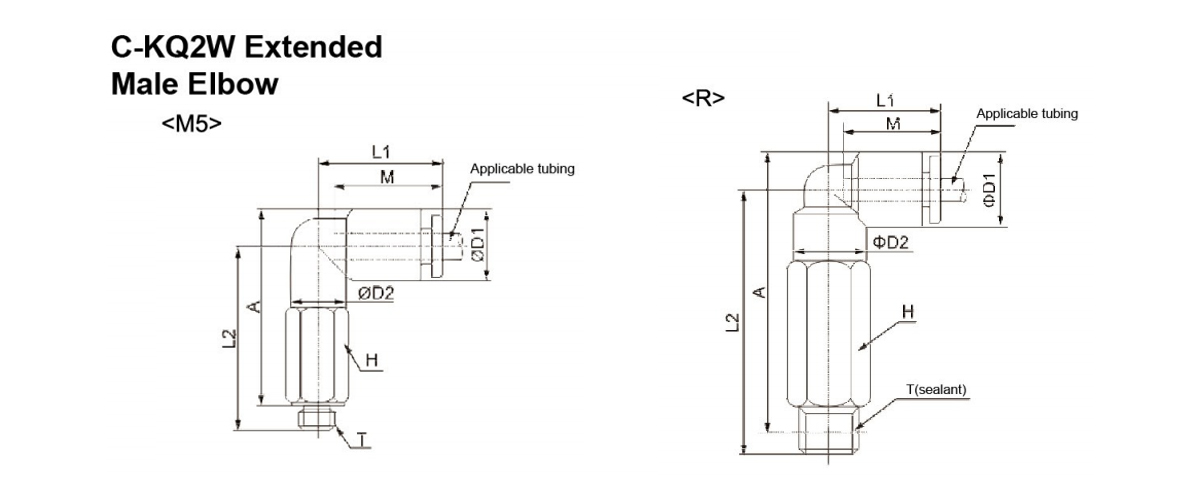

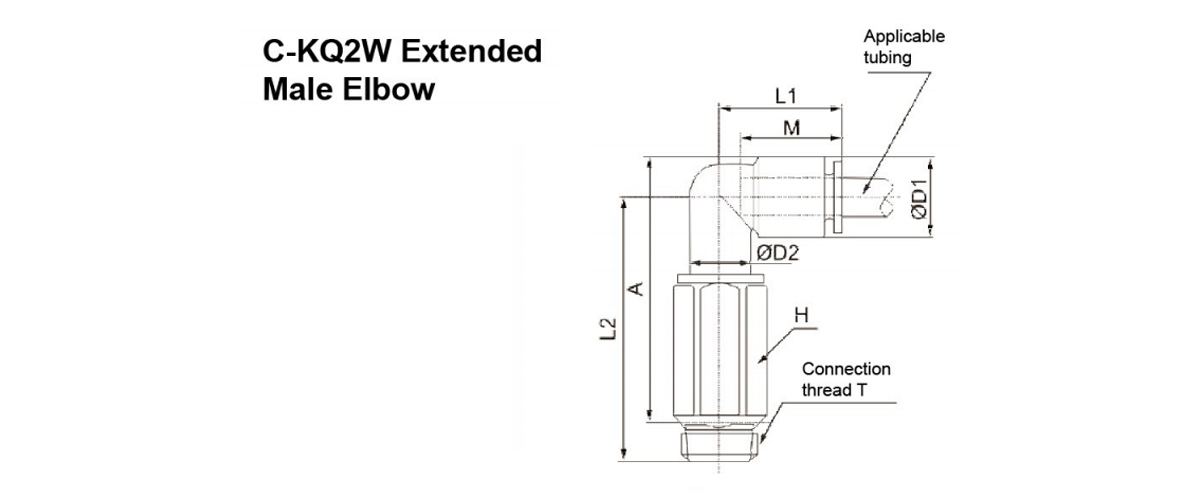

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2W04-01S 18 10 10.4 10 18 37.5 38.5 16 4.0 4.0 23
    C-KQ2W04-02S 1/4 14 43.5 42.5 38
    Ø6 C-KQ2W06-01S 1/8 10 12.8 10 20 40 42.5 17 10.9 8.6 26
    C-KQ2W06-02S 1/4 14 46 46.5 41
    C-KQ2W06-03S 3/8 17 48 48 67
    Ø8 C-KQ2W08-01S 18 12 15.2 12 23 43.5 47 18.5 20.5 14.2 30
    C-KQ2W08-02S 1/4 14 49.5 51 47
    C-KQ2W08-03S 3/8 17 51.5 52.5 74
    Ø10 C-KQ2W10-02S 1/4 17 18.5 17 26.5 58.5 59.5 21 33.5 23.8 66
    C-KQ2W10-03S 8 58.5 61 76
    C-KQ2W10-04S 1/2 22 65 66 145
    Ø12 C-KQ2W12-02S 1/4 17 20.9 17 28.5 57.5 62 22 47.7 37.7 68
    C-KQ2W12-03S 3/8 59.5 63.5 78
    C-KQ2W12-04S 1/2 22 66 68.5 147
    Ø16 C-KQ2W16-03S 3/8 22 26.5 20.9 34 69.5 76 25 71 (71) 101
    C-KQ2W16-04S 72 75 80 100 (84) 105

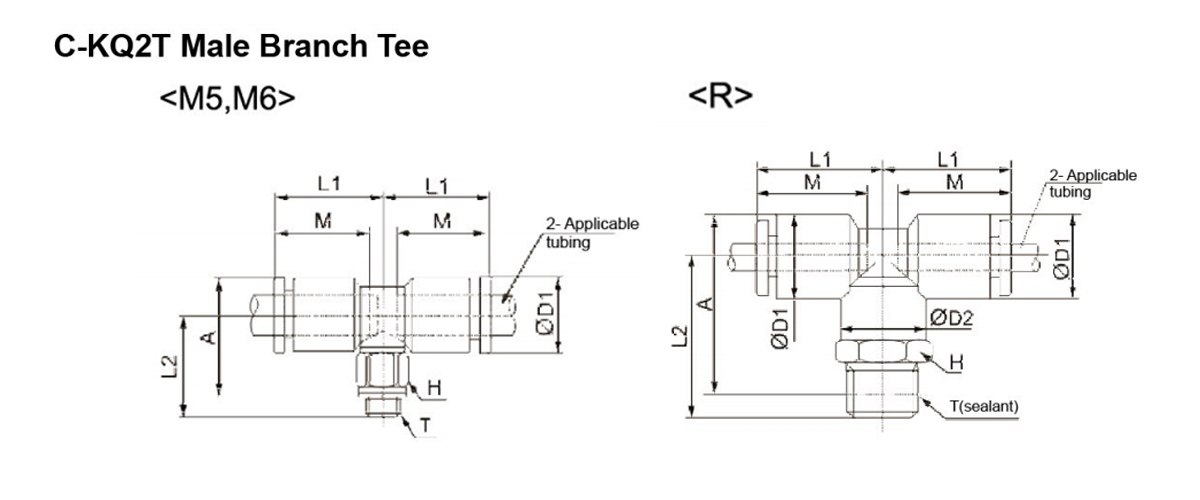

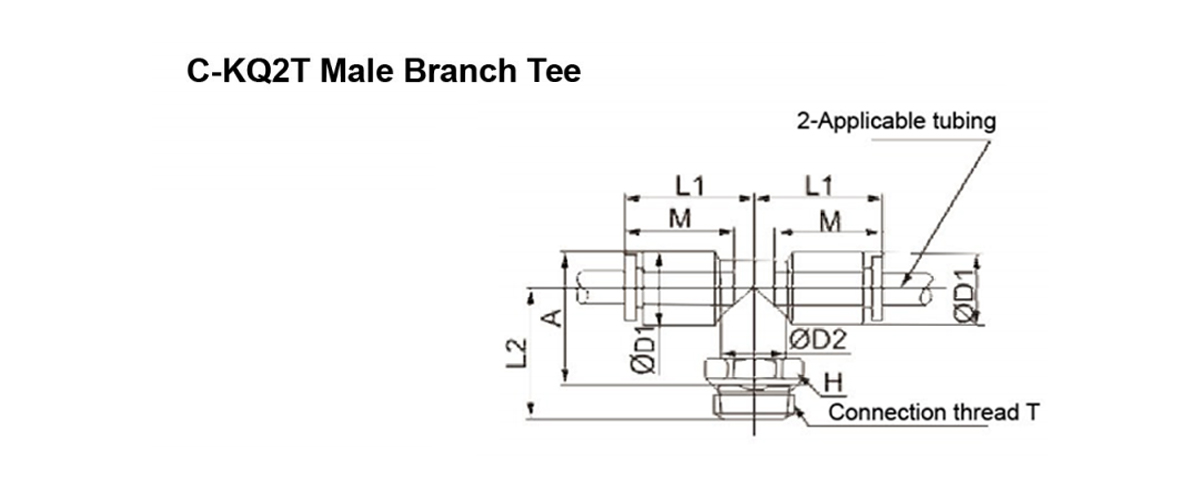

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø3.2 C-KQ2T23-01S 1/8 10 9.6 10 17.5 21.5 22.5 15.5 3.4 2.9 10
    C-KQ2T23-02S 1/4 4 25.5 24.5 20
    Ø4 C-KQ2T04-01S 1/8 10 10.4 10 18 22 23 16 6.0 4.1 13
    C-KQ2T04-02S 1/4 14 26 25 19
    Ø6 C-KQ2T06-01S 1/8 10 12.8 10 20 23 25.5 17 13.9 11.0 12
    C-KQ2T06-02S 1/4 14 27 27.5 20
    C-KQ2T06-03S 3/8 17 29 29 34
    Ø8 C-KQ2T08-01S 1/8 12 15.2 12 23 24.5 28 18.5 26.3 18.2 14
    C-KQ2T08-02S 1/4 14 28.5 30 22
    C-KQ2T08-03S 3/8 17 30.5 31.5 36
    Ø10 C-KQ2T10-01S 1/8 17 18.5 17 26.5 27 32 21 40.8 29.0 31
    C-KQ2T10-02S 1/4 30 33 29
    C-KQ2T10-03S 3/8 32 34.5 39
    C-KQ2T10-04S 1/2 22 36 37 66
    Ø12 C-KQ2T12-02S 1/4 17 20.9 17 28.5 31 35.5 22 57.2 45.2 31
    C-KQ2T12-03S 3/8 33 37 41
    C-KQ2T12-04S 1/2 22 37 39.5 38
    Ø16 C-KQ2T16-03S 3/8 22 26.5 20.9 34 38 44.5 25 71 71 112
    C-KQ2T16-04S 1/2 40.5 46 100 100 116

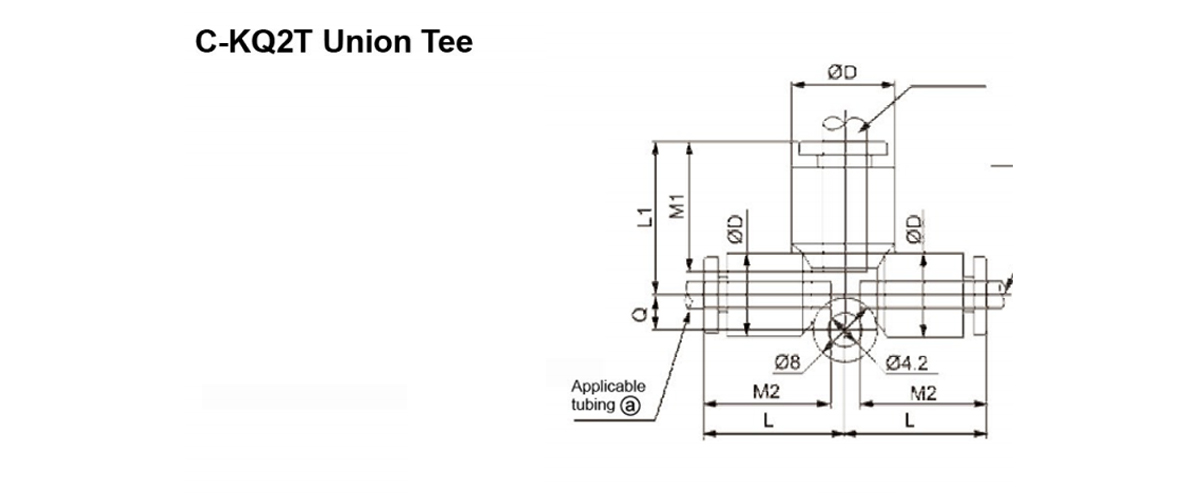

    Applicable Tubing O.D (mm) Model ØD L Q M Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ 1 2 Nylon Urethane
    Ø4 C-KQ2T04-00 10.4 18 4.5 16 6.4 4.4 7
    Ø6 C-KQ2T06-00 12.8 20 5.3 17 13.4 10.6 10
    Ø8 C-KQ2T08-00 15.2 23 6 18.5 25.6 17.7 15
    Ø10 C-KQ2T10-00 18.5 26.5 6.8 21 40 28.4 25
    Ø12 C-KQ2T12-00 20.9 28.5 7.5 22 57.4 45.4 29
    Ø16 C-KQ2T16-00 26.5 34 10 25 100 (84) 40
    Ø4 Ø6 C-KQ2T04-06 12.8 20 4.5 17 16 7.1 6.5 5
    Ø6 Ø8 C-KQ2T06-08 15.2 23 5.3 18.5 17 16.4 16.4 8
    Ø8 Ø10 C-KQ2T08-10 18.5 26.5 6 21 18.5 36 27.2 14
    Ø10 Ø12 C-KQ2T10-12 20.9 28.5 6.8 22 21 56 44.5 21
    Ø12 Ø16 C-KQ2T12-16 26.5 34 10 25 22 108.5 (92.2) 88
    Ø6 Ø4 C-KQ2T06-04 120.8 20 5.3 16 17 6.4 4.4 10
    Ø8 Ø6 C-KQ2T08-06 15.2 23 6 17 18.5 13.4 10.6 15
    Ø10 Ø8 C-KQ2T10-08 18.5 26.5 7.5 18.5 21 25.6 17.7 25
    Ø12 Ø10 C-KQ2T12-10 20.9 28.5 7.5 21 22 40 28.4 29
    Ø16 Ø12 C-KQ2T16-12 26.5 34 10 22 25 57.4 45.4 90

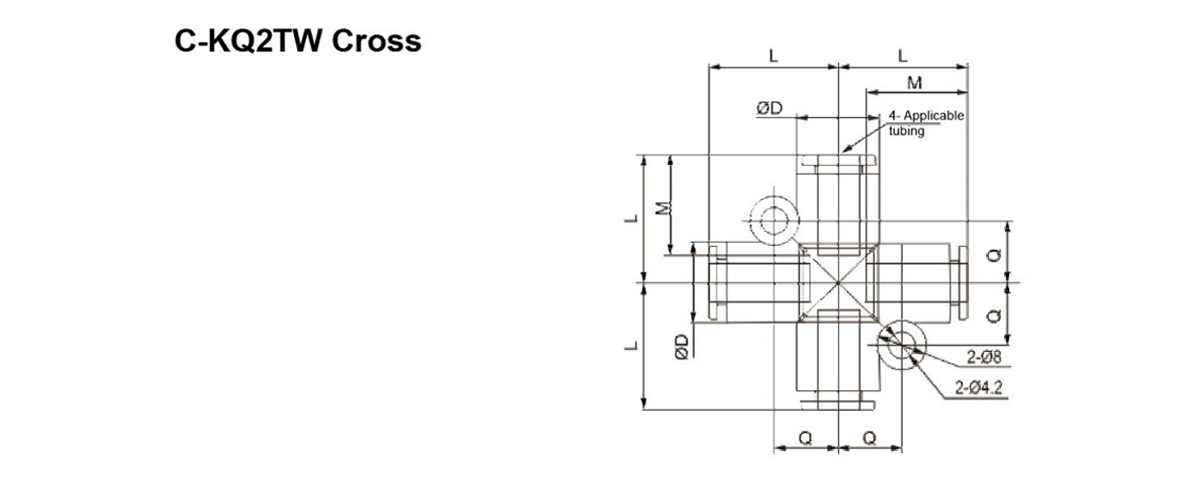

    Applicable Tubing O.D (mm) Model ØD L Q M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2TW04-00 10.4 18 8.7 16 6.4 4.4 9
    Ø6 C-KQ2TW06-00 12.8 20 9.9 17 13.4 10.6 13
    Ø8 C-KQ2TW08-00 15.2 23 11.1 18.5 25.6 17.7 20
    Ø10 C-KQ2TW10-00 18.5 26.5 12.8 21 40 28.4 33
    Ø12 C-KQ2TW12-00 20.9 28.5 13.9 22 57.4 45.4 39

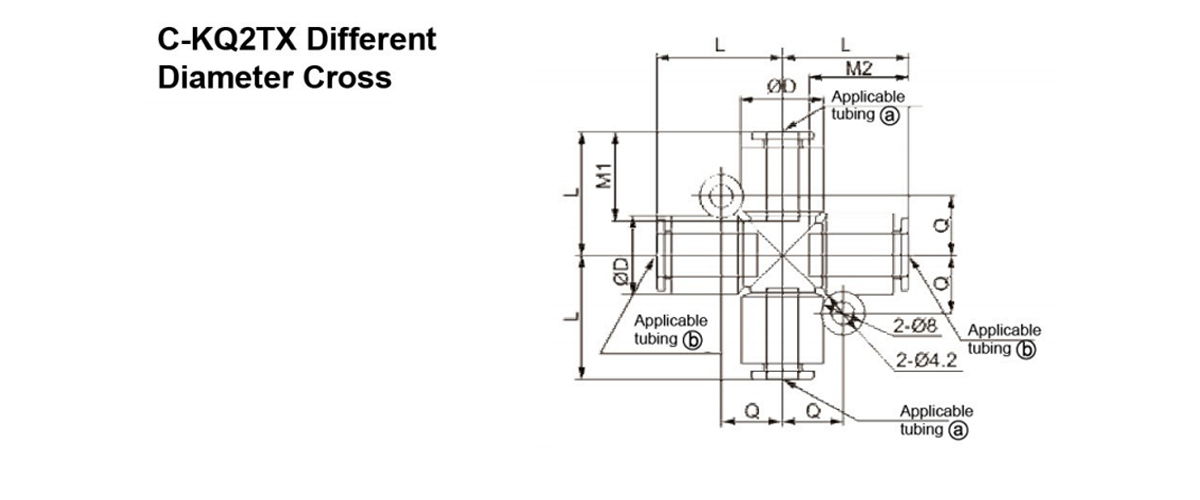

    Applicable
    Tubing O.D
    (mm)     		Model ØD L Q M1 M2 Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ Nylon Urethane
    Ø6 Ø8 C-KQ2TX06-08 15.2 23 11.1 18.5 17 13.4 10.6 13
    Ø8 Ø10 C-KQ2TX08-10 18.5 26.5 12.8 21 18.5 25.6 17.7 27
    Ø10 Ø12 C-KQ2TX10-12 20.9 28.5 13.9 22 21 40 28.4 36

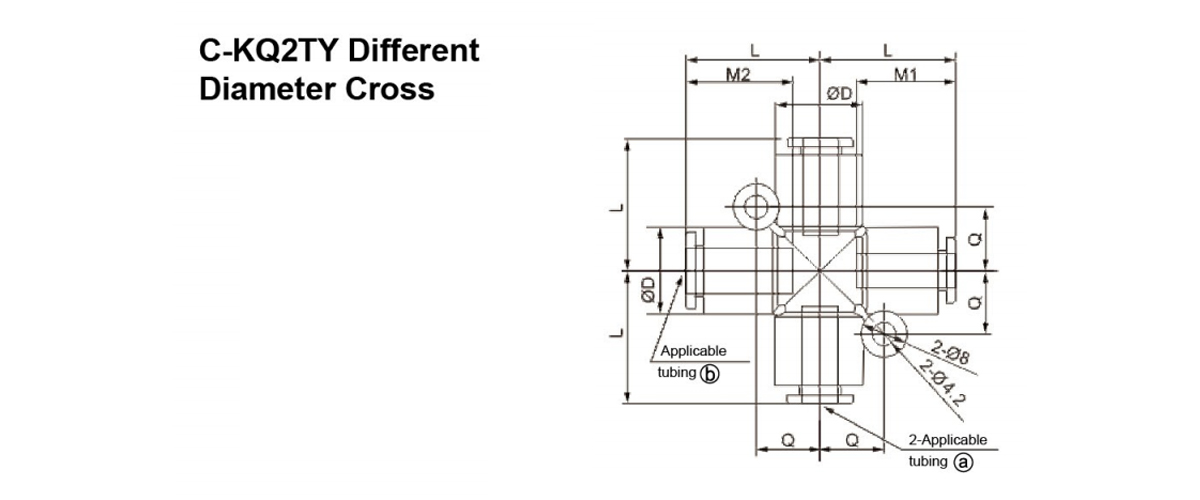

    Applicable
    Tubing O.D
    (mm)     		Model ØD L Q M1 M2 Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ Nylon Urethane
    Ø6 Ø8 C-KQ2TY06-08 15.2 23 11.1 17 18.5 13.4 10.6 15
    Ø8 Ø10 C-KQ2TY08-10 18.5 26.5 12.8 18.5 21 25.6 17.7 23
    Ø10 Ø12 C-KQ2TY10-12 20.9 28.5 13.9 21 22 40 28.4 35


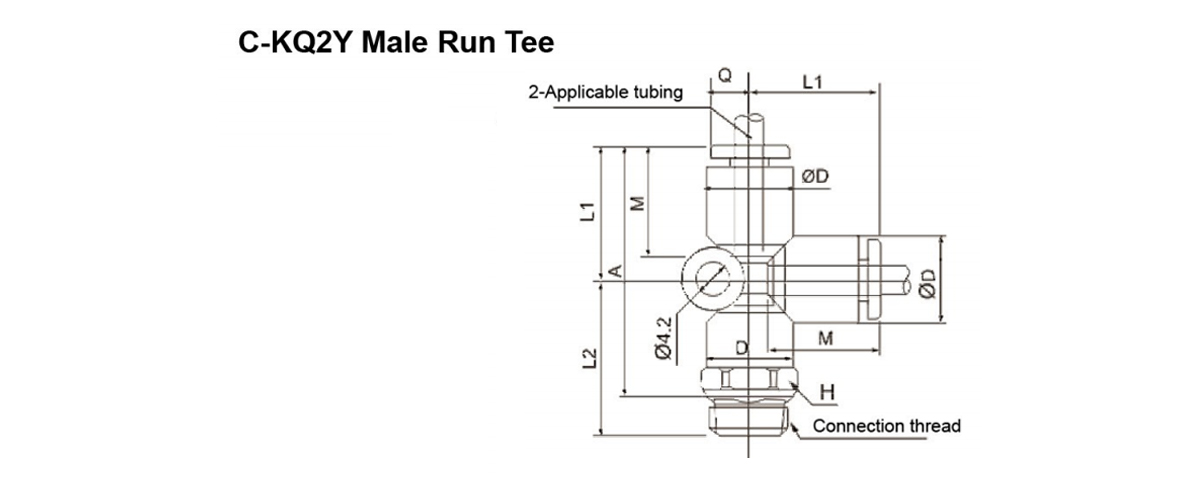

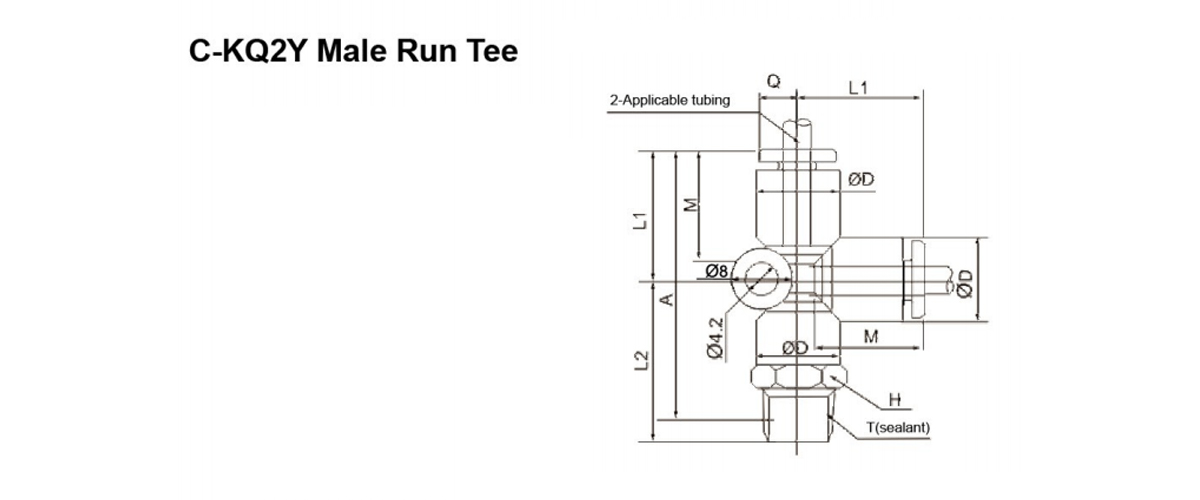

    Applicable Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD Q L1 L2 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø04 C-KQ2Y 04-01S R1/8 14 10.5 4.6 18.1 22.1 36.1 16.1 6.4 4.4 13
    C-KQ2Y 04-02S R1/4 26.1 38.1 19
    Ø06 C-KQ2Y 06-01S R1/8 12.9 5.4 20.1 23.1 39.1 17.1 13.4 10.6 12
    C-KQ2Y 06-02S R1/4 27.1 41.1 20
    C-KQ2Y 06-03S R3/8 29.1 42.6 34
    Ø08 C-KQ2Y 08-01S R1/8
    17     		15.3 6.1 23.1 24.6 43.6 18.6 25.6 12.7 14
    C-KQ2Y 08-02S R1/4 28.6 45.6 22
    C-KQ2Y 08-03S R3/8 30.6 47.2 36
    Ø10 C-KQ2Y 10-01S R1/8 19 18.6 6.9 26.6 27.1 49.7 21 40 28.4 31
    C-KQ2Y 10-02S R1/4 30.1 50.7 29
    C-KQ2Y 10-03S R3/8 32.1 52.1 39
    C-KQ2Y 10-04S R1/2 22 36.1 54.6 66
    Ø12 C-KQ2Y 12-02S R1/4 21 7.6 28.6 31.1 53.6 22.1 57.4 45.4 31
    C-KQ2Y 12-03S R3/8 33.1 55.2 41
    C-KQ2Y 12-04S R1/2 37.1 57.6 68


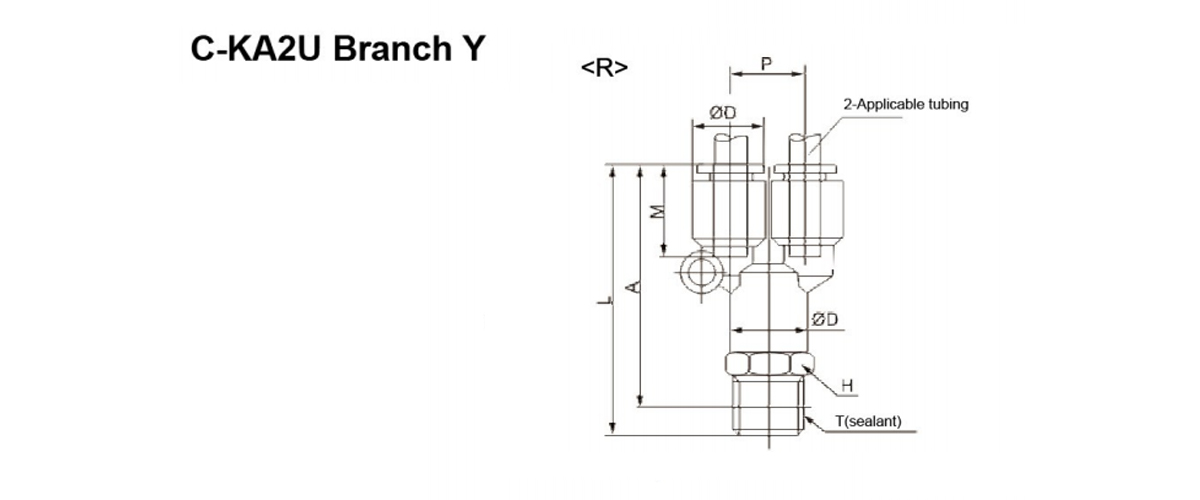

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L P A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2U04-01S 1/8 11 10.4 42 10.4 38 16 4.2 4.2 11
    C-KQ2U04-02S 1/4 14 46 40 20
    Ø6 C-KQ2U06-01S 1/8 13 12.8 45.5 12.8 41.5 17 13.4 10.6 11
    C-KQ2U06-02S 1/4 14 49 43 21
    C-KQ2U06-03S 3/8 17 51 44.5 34
    Ø8 C-KQ2U08-01S 1/8 17 15.2 52.5 15.2 48.5 18.5 25.6 17.7 15
    C-KQ2U08-02S 1/4 55.5 49.5 23
    C-KQ2U08-03S 3/8 56.5 50 35
    Ø10 C-KQ2U10-02S 1/4 19 18.5 61 18.5 55 21 40 28.4 30
    C-KQ2U10-03S 3/8 62 55.5 40
    C-KQ2U10-04S 1/2 22 65 57 65
    Ø12 C-KQ2U12-02S 1/4 22 20.9 64.5 20.9 58.5 22 57.4 45.4 32
    C-KQ2U12-03S 3/8 65.5 59 40
    C-KQ2U12-04S 1/2 68.5 60.5 65
    Ø16 C-KQ2U16-03S 27 26.5 76 26.5 69.5 25 81 (81) 106
    C-KQ2U16-04S 79 71 113 (96) 111

    Applicable
    Tubing O.D
    (mm)     		Model ØD1 ØD2 L1 L2 P I Q M1 M2 Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ Nylon Urethane

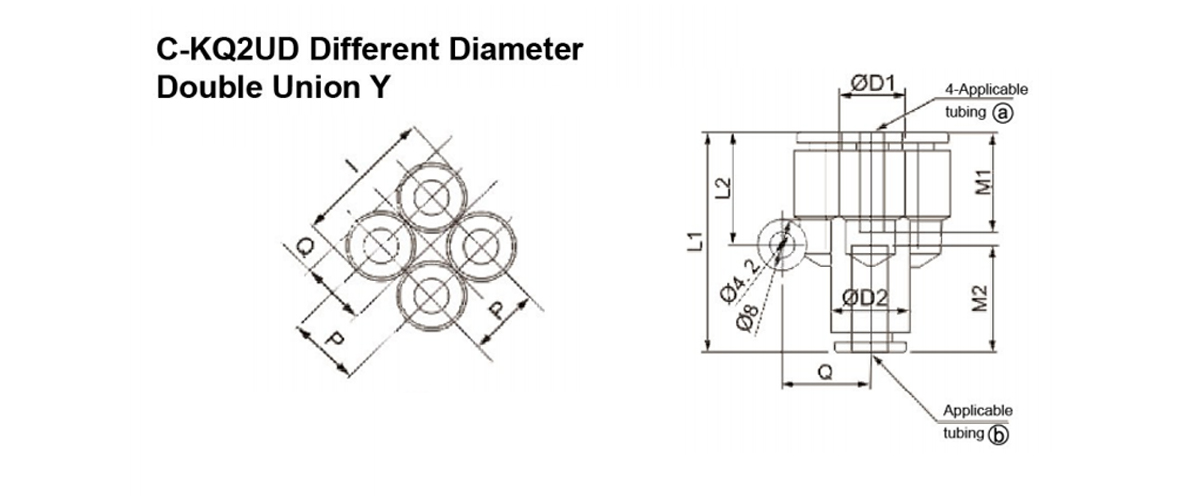

    Ø4 Ø6 C-KQ2UD04-06 10.4 12.8 35.5 18.2 10.4 21 9.7 16 17 4.2 4.2 10
    Ø6 Ø8 C-KQ2UD06-08 12.8 15.2 40.5 20.3 12.8 26 11.7 17 18.5 13.4 10.6 17


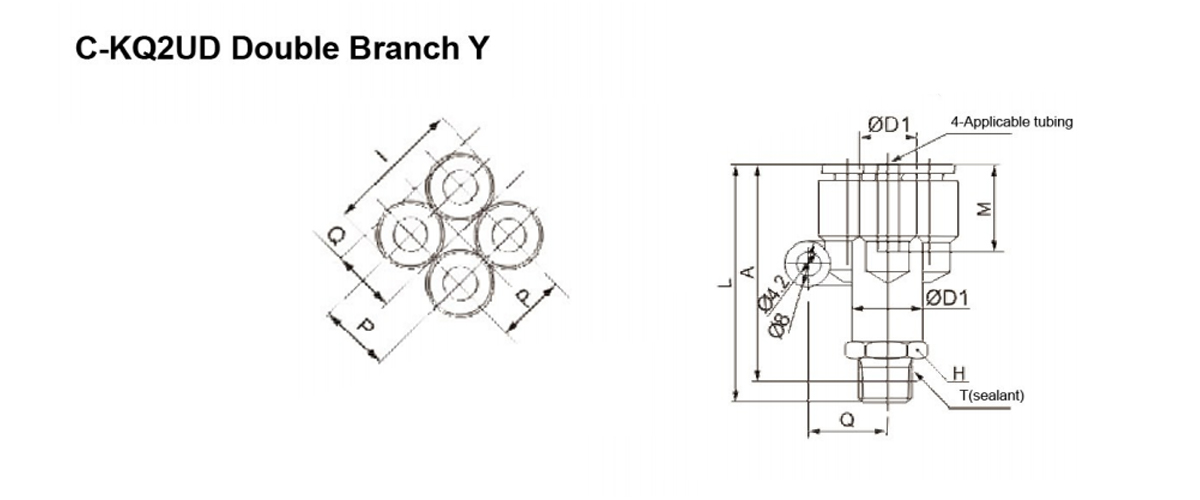

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L I A Q M P
    Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2UD04-01S 1/8 13 10.4 12.8 43.5 21 39.5 9.7 16 10.4 4.2 4.2 17
    C-KQ2UD04-02S 1/4 14 47 41 25
    Ø6 C-KQ2UD06-01S 1/8 17 12.8 15.2 50.5 26 46.5 11.7 17 12.8 13.4 10.6 29
    C-KQ2UD06-02S 1/4 53.5 47.5

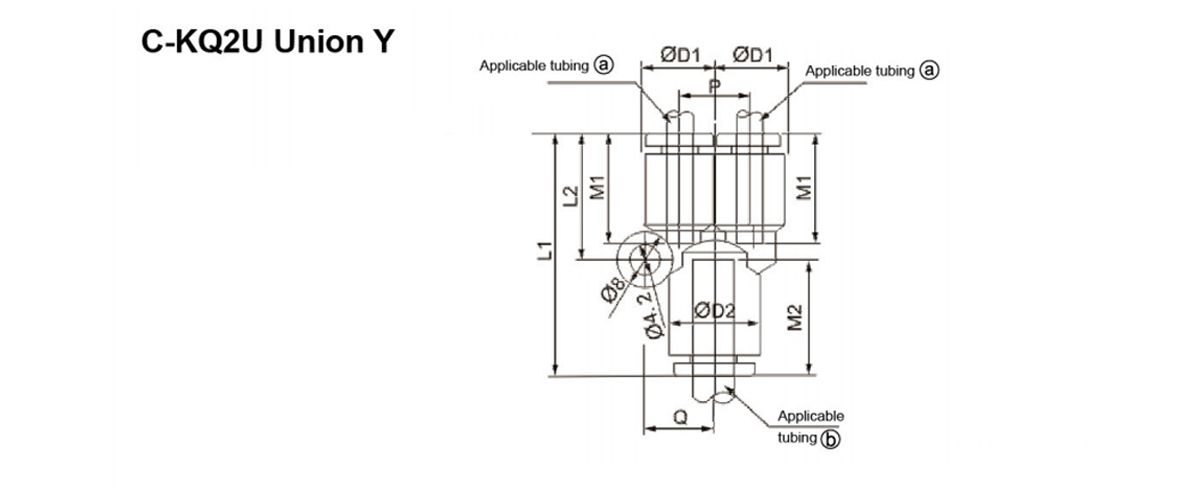

    Applicable Tubing O.D
    (mm)     		Model ØD L1 L2 P Q M Effective Area
    (mm²)     		Weight
    (g)
    ⓐ ⓑ 1 2 Nylon Urethane
    Ø4 C-KQ2U04-00 10.4 34 18 10.4 9.7 16 4.2 4.2 7
    Ø6 C-KQ2U06-00 12.8 34 20 12.8 11.7 17 13.4 10.6 9
    Ø8 C-KQ2U08-00 15.2 42.5 24.5 15.2 13.7 18.5 25.6 17.7 11
    Ø10 C-KQ2U10-00 18.5 48 27.5 18.5 16.1 21 40 28.4 16
    Ø12 C-KQ2U12-00 20.9 51 30 20.9 18.1 22 57.4 45.4 23
    Ø16 C-KQ2U16-00 26.5 61.5 36.5 26.5 23 25 113 (96) 54
    Ø4 Ø6 C-KQ2U04-06 12.8 35 18 10.4 9.7 16 17 4.2 4.2 6
    Ø6 Ø8 C-KQ2U06-08 15.2 39.5 20 12.8 11.7 17 18.5 13.4 10.6 11
    Ø8 Ø10 C-KQ2U08-10 18.5 45 24.5 15.2 13.7 18.5 21 25.6 17.1 18
    Ø10 Ø12 C-KQ2U10-12 20.9 49 27.5 18.5 16.1 21 22 40 28.4 27
    Ø12 Ø16 C-KQ2U12-16 26.5 66.5 41.5 26.5 23 22 25 57.4 45.4 100
    Ø6 Ø4 C-KQ2U06-04 12.8 35 18 10.4 9.7 17 16 4.2 4.2 6
    Ø8 Ø6 C-KQ2U08-06 15.2 39.5 20 12.8 11.7 18.5 17 13.4 10.6 11
    Ø10 Ø8 C-KQ2U10-08 18.5 45 24.5 15.2 13.7 21 18.5 25.6 17.1 18
    Ø12 Ø10 C-KQ2U12-10 20.9 49 27.5 18.5 16.1 22 21 40 28.4 27
    Ø16 Ø12 C-KQ2U16-12 26.5 66.5 41.5 26.5 23 25 22 57.4 45.4 100

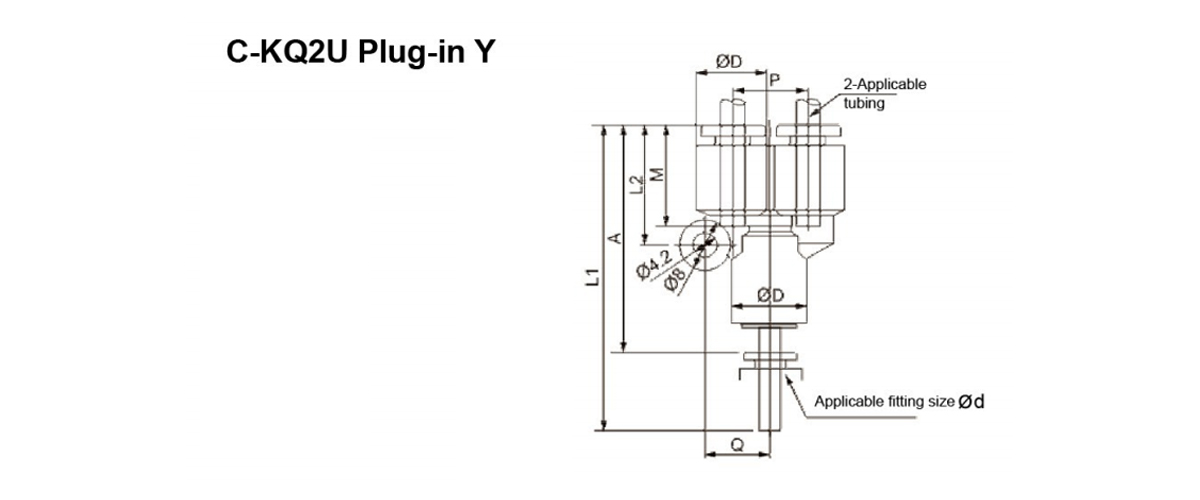

    Applicable
    Tubing
    (mm)     		Applic-
    able Fitting
    Size
    ØD     		Model ØD L1 L2 P Q A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 Ø4 C-KQ2U04-99 10.4 51.5 18 10.4 9.7 35.5 16 4.2 4.2 22
    Ø6 Ø6 C-KQ2U06-99 12.8 55.5 20 12.8 11.7 38.5 17 13.4 10.6 28
    Ø8 Ø8 C-KQ2U08-99 15.2 64.5 24.5 15.2 13.7 46 18.5 25.6 17.7 21
    Ø10 Ø10 C-KQ2U10-99 18.5 71.5 27.5 18.5 16.1 50.5 21 40 28.4 36
    Ø12 Ø12 C-KQ2U12-99 20.9 75.5 30 20.9 18.1 53.5 22 57.4 45.4 32
    Ø16 Ø16 C-KQ2U16-99 26.5 90 36.5 26.5 23 65 25 113 (96) 88

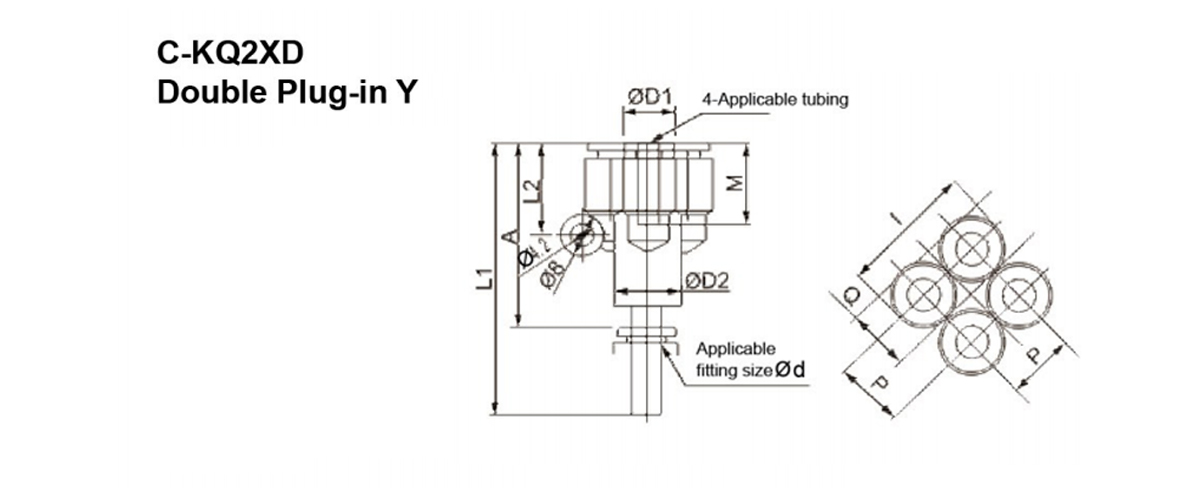

    Applicable
    Tubing
    (mm)
    Applic-
    able Fitting
    Size
    XD     		Model ØD1 ØD2 L1 L2 I Q A P M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 Ø6 C-KQ2XD04-06 10.4 12.8 54 18.2 21 9.7 37 10.4 16 4.2 4.2 10
    Ø6 88 C-KQ2XD06-08 12.8 15.2 62.5 20.3 26 11.7 44 12.8 17 13.4 10.6 23


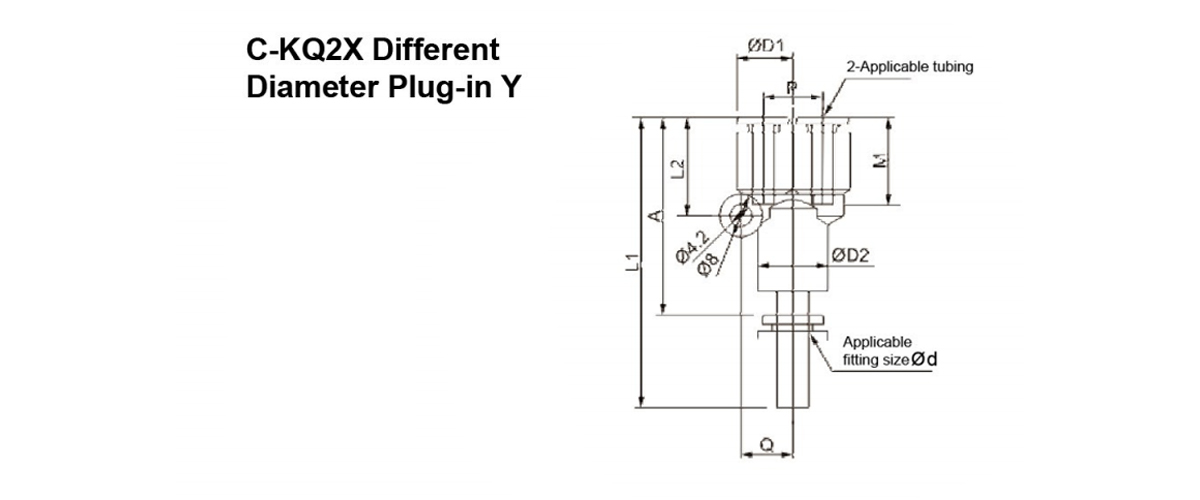

    Applicable
    Tubing
    (mm)     		Applic-
    able Fitting
    Size
    ØD     		Model ØD1 ØD2 L1 L2 A P Q M Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 Ø6 C-KQ2X04-06 10.4 12.8 53.5 18.5 36.5 10.4 9.7 16 4.2 4.2 17
    Ø6 Ø8 C-KQ2X06-08 12.8 15.2 61.5 20.5 43 12.8 11.7 17 13.4 10.6 28
    Ø8 Ø10 C-KQ2X08-10 15.2 18.5 68.5 24.5 47.5 15.2 13.7 18.5 25.6 17.1 38
    Ø10 Ø12 C-KQ2X10-12 18.5 20.9 73.5 27.5 51.5 18.5 16.1 21 40 28.4 52

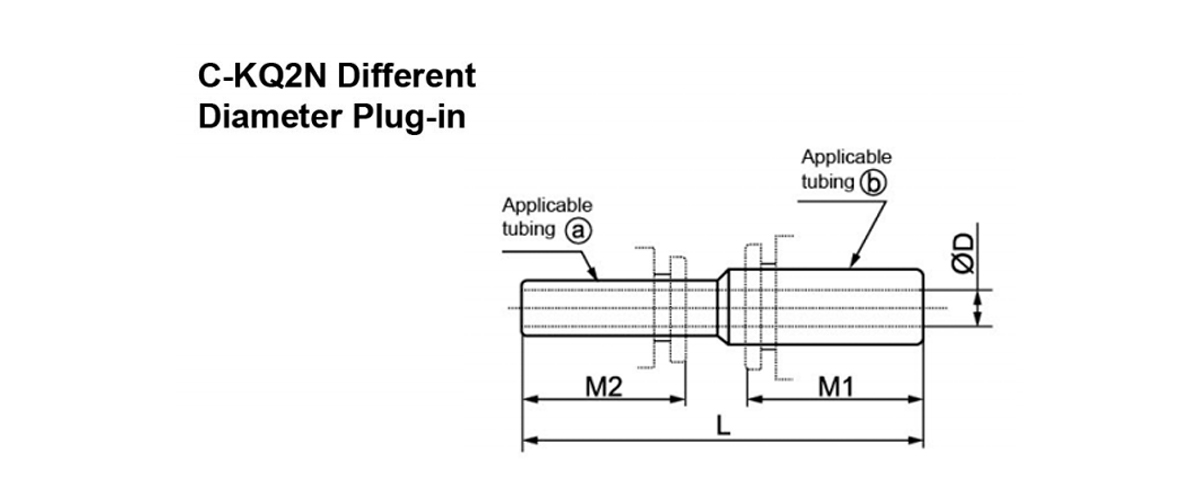

    Applicable Tubing
    (mm)     		Model L M1 M2 ØD Weight
    (g)
    ⓐ ⓑ
    Ø4 Ø6 C-KQ2N04-06 38 17 16 2.5 2
    Ø6 Ø8 C-KQ2N06-08 42 18.5 17 4 2
    Ø8 Ø10 C-KQ2N08-10 47 21 18.5 6 13.2
    Ø10 Ø12 C-KQ2N10-12 51 22 21 8 18.2

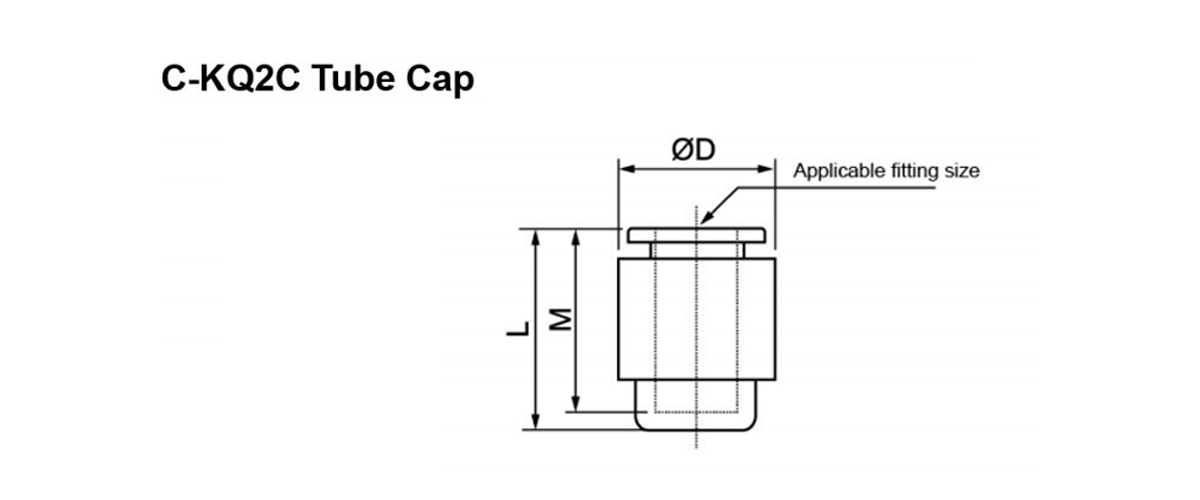

    Applicable Tubing
    (mm)     		Model ØD L M
    Weight
    (g)
    Ø4 C-KQ2C04-00 10.4 17 16 3
    Ø6 C-KQ2C06-00 12.8 18.5 17 3
    Ø8 C-KQ2C08-00 15.2 20.5 18.5 4
    Ø10 C-KQ2C10-00 18.5 23 21 6
    Ø12 C-KQ2C12-00 20.9 24 22 8

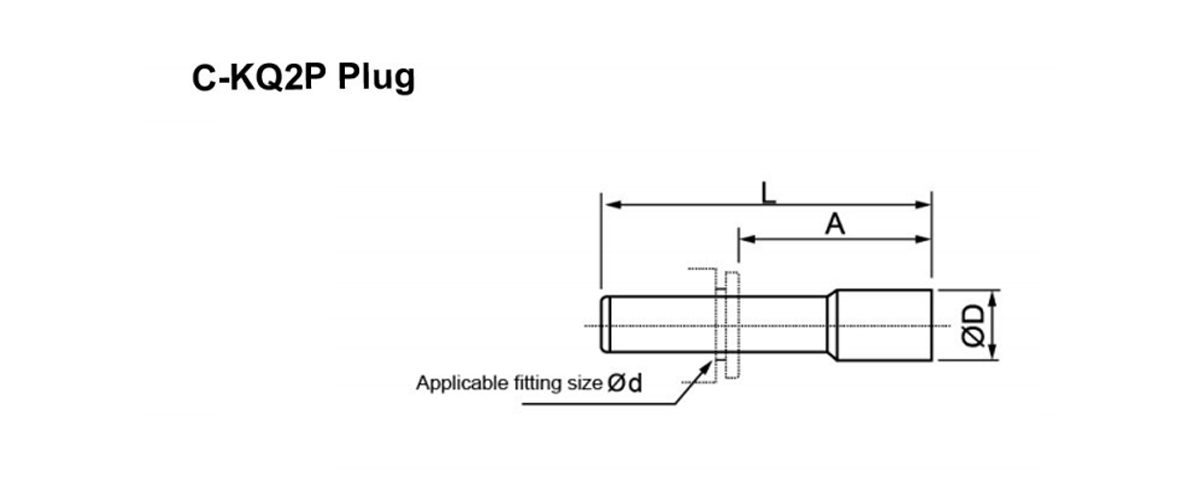

    Applicable
    Fitting Size
    ØD     		Model ØD L A Weight
    (g)
    Ø4 C-KQ2P-04 6 32 16 1
    Ø6 C-KQ2P-06 8 35 18 1
    Ø8 C-KQ2P-08 10 39 20.5 2
    Ø10 C-KQ2P-10 12 43 22 3.5
    Ø12 C-KQ2P-12 14 45.5 24 5

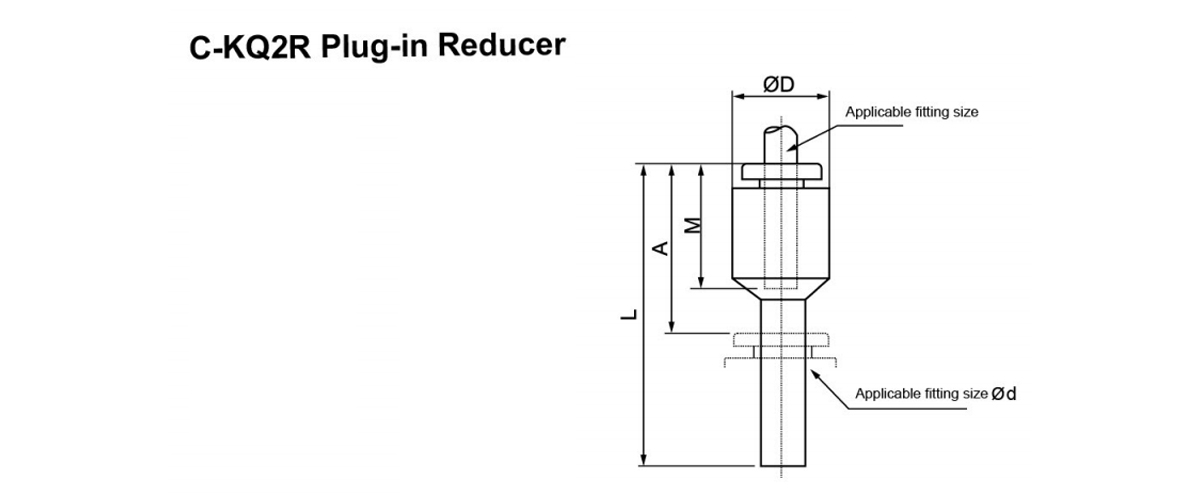

    Applicable
    Tubing
    (mm)     		Applicable
    Fitting Size
    ØD     		Model ØD L A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 Ø6 C-KQ2R04-06 10.4 34.5 17.5 15 5.6 4 1.8
    88 C-KQ2R04-08 36.5 18 2.0
    Ø10 C-KQ2R04-10 12.8 39.5 18.5 3.3
    Ø6 Ø4 C-KQ2R06-04 12.8 37 21 17 4 4 2.5
    88 C-KQ2R06-08 12.8 37 18.5 13.1 10.4 2.5
    Ø10 C-KQ2R06-10 39.5 18.5 3
    Ø12 C-KQ2R06-12 15.2 42 20 4.7
    Ø8 Ø10 C-KQ2R08-10 15.2 41 20 18.5 26.1 18.0 4.0
    Ø12 C-KQ2R08-12 42 4.6
    Ø10 Ø12 C-KQ2R10-12 18.5 44.5 23 21 41.5 32.8 33

    Applicable
    Tubing
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		L
    Mount
    -ing
    Hole     		M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    φ4 C-KQ2E04-00 M12×1 14 32.5 13 16 5.6 4 26
    Φ6 C-KQ2E06-00 M¹4×1 17 34.5 15 17 13.1 10.4 33
    φ8 C-KQ2E08-00 M16×1 19 38 17 18.5 26.1 18.0 52
    φ10 C-KQ2E10-00 M20×1 24 42.5 21 21 41.5 29.5 70
    φ12 C-KQ2E12-00 M22×1 27 44 23 22 58.3 46.1 90
    Φ16 C-KQ2E16-00 M28×1.5 32 51 29 28 113 (96) 115


    Applicable
    Tubing
    (mm)     		Model Connection Thread T
    H1
    Width
    Across
    Flats
    H2
    Width
    Across
    Flats     		B E ØD
    Mount
    -ing
    Hole     		M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2LE04-00 M12×1 14 14 18.5 31 10.4 13 16 4.2 4.2 18
    Ø6 C-KQ2LE06-00 M14×1 17 17 20.5 34 12.8 15 17 11.4 9.0 25
    Ø8 C-KQ2LE08-00 M16×1 17 19 23.5 38.5 15.2 17 18.5 21.6 14.9 33
    Ø10 C-KQ2LE10-00 M20×1 22 24 26.5 43.5 18.5 21 21 35.2 25.0 63
    Ø12 C-KQ2LE12-00 M22×1 24 27 28.5 45.5 20.9 23 22 50.2 39.7 77

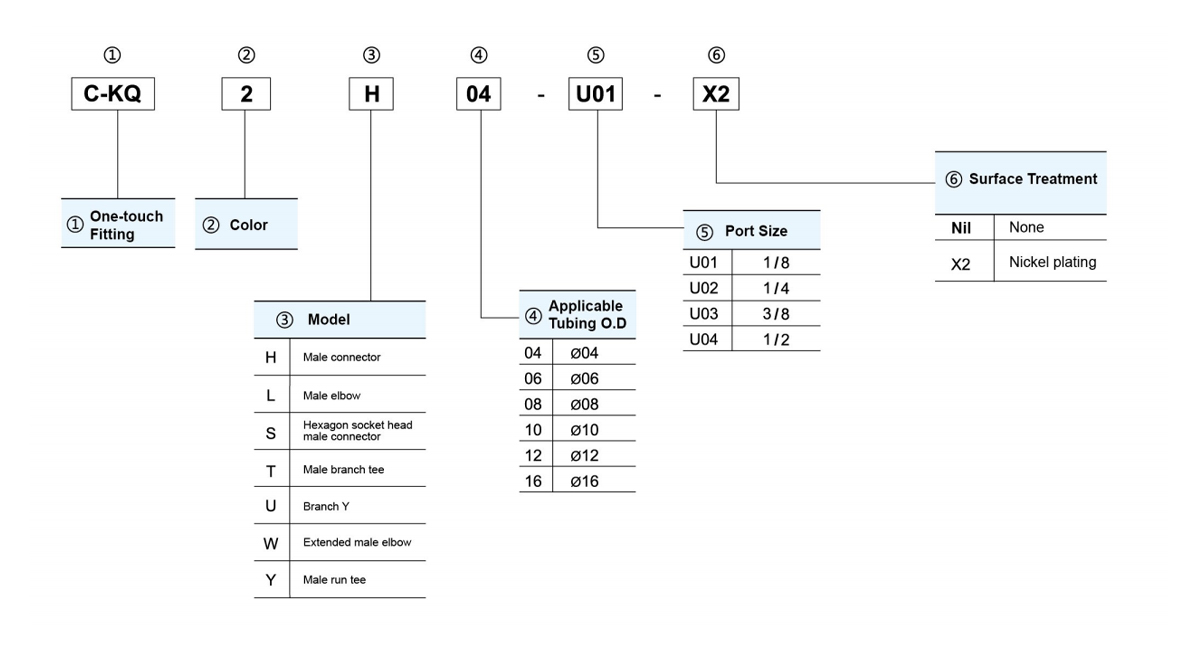

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		L A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2H04-U01 18 10 18.5 13.5 16 5.6 5.6 5
    C-KQ2H04-U02 14 14 16.5 10.5 10
    Ø6 C-KQ2H06-U01 1/8 1214 19.5 14.5 17 13.1 13.1 5
    C-KQ2H06-U02 14 13 10
    C-KQ2H06-U03 38 17 17.5 11.5 16
    Ø8 C-KQ2H08-U01 18 14 25 20.5 18.5 26.1 18.0 11
    C-KQ2H08-U02 14 21.5 15.5 27
    C-KQ2H08-U03 3/8 17 19.5 13.5 33
    Ø10 C-KQ2H10-U01 1/8 17 28 23 21 41.5 29.5 17
    C-KQ2H10-U02 14 22 17
    C-KQ2H10-U03 3/8 24 18 14
    C-KQ2H10-U04 12 22 22 14 28
    Ø12 C-KQ2H12-U02 14 19 30.5 24.5 22 58.3 46.1 22
    C-KQ2H12-U03 3/8 25.5 19.5 16
    C-KQ2H12-U04 12 22 24.5 16.5 28
    Ø16 C-KQ2H16-U03 3/8 24 33.5 27.5 24 81 (81) 39
    C-KQ2H16-U04 1/6
    72     		28.5 20.5 113 (96) 25


    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    ( g)
    Nylon Urethane
    Ø4 C-KQ2L04-U01 18 10 10.4 10 18 20 20.5 16 4.2 4.2 8
    C-KQ2L04-U02 1/4 14 22 21.5 14
    Ø6 C-KQ2L06-U01 1/8 10 12.8 10 20 21.5 23.5 17 11.4 11.4 9
    C-KQ2L06-U02 14 14 23 15
    C-KQ2L06-U03 3/8 17 24 24.5 23
    Ø8 C-KQ2L08-U01 18 12 15.2 12 23 22.5 25.5 18.5 21.6 14.9 11
    C-KQ2L08-U02 14 14 24.5 26 16
    C-KQ2L08-U03 3/8 17 25.5 27 24
    Ø10 C-KQ2L10-U01 1/8 17 18.5 17 26.5 25 29.5 21 21.6 14.9 24
    C-KQ2L10-U02 14 26.5 30 35.2 25.0 21
    C-KQ2L10-U03 3/8 27 30.5 25
    C-KQ2L10-U04 12 22 30 31.5 45
    Ø12 C-KQ2L12-U02 14 17 20.9 17 28.5 27 31.5 22 50.2 39.7 23
    C-KQ2L12-U03 3/8 28 32.5 27
    C-KQ2L12-U04 12 22 31 33.5 48
    Ø16 C-KQ2L16-U03 3/8 22 26.5 21 33 40.5 33 24 71 (71) 49
    C-KQ2L16-U04 35 100 (84) 50

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    ( mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2T04-U01 18 10 10.4 10 18 20 21.5 16 6.0 6.0 9
    C-KQ2T04-U02 14 14 22 15
    Ø6 C-KQ2T06-U01 1/8 10 12.8 10 20 21.5 23.5 17 13.9 13.9 11
    C-KQ2T06-U02 14 14 23 17
    C-KQ2T06-U03 3/8 17 24 24.5 26
    Ø8 C-KQ2T08-U01 18 12 15.2 12 23 22.5 26 18.5 26.3 18.2 15
    C-KQ2T08-U02 14 14 24.5 20
    C-KQ2T08-U03 3/8 17 25.5 27 28
    Ø10 C-KQ2T10-U01 18 17 18.5 17 26.5 25 29.5 21 40.8 29.0 30
    C-KQ2T10-U02 1/4 26.5 30 27
    C-KQ2T10-U03 3/8 27 30.5 31
    C-KQ2T10-U04 12 22 30 31.5 51
    Ø12 C-KQ2T12-U02 14 17 20.9 17 28.5 27 31.5 22 57.2 45.2 31
    C-KQ2T12-U03 3/8 28 32.5 34
    C-KQ2T12-U04 1/2 22 31 33.5 54
    Ø16 C-KQ2T16-U03 22 26.5 21 33 40.5 33 24 71 (71) 62
    C-KQ2T16-U04 35 100 (100) 63

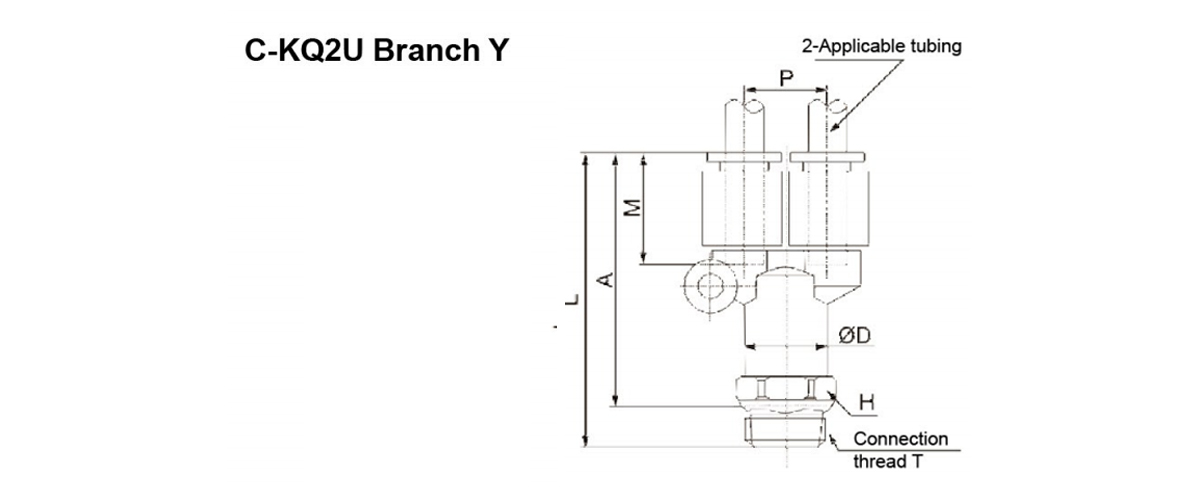

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 L P A M
    Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2U04-U01 18 11 10.4 40 10.4 36 16 4.2 4.2 11
    C-KQ2U04-U02 1/4 14 42 16
    Ø6 C-KQ2U06-U01 1/8 13 12.8 43.5 12.8 39.5 17 13.4 13.4 14
    C-KQ2U06-U02 1/4 14 45 39 18
    C-KQ2U06-U03 3/8 17 46 40 26
    Ø8 C-KQ2U08-U01 18 17 15.2 50.5 15.2 46.5 18.5 25.6 17.7 27
    C-KQ2U08-U02 14 52 46 25
    C-KQ2U08-U03 3/8 51.5 45.5 28
    Ø10 C-KQ2U10-U02 1/4 19 18.5 57.5 18.5 51.5 21 40 28.4 38
    C-KQ2U10-U03 3/8 36
    C-KQ2U10-U04 1/2 22 59 51 51
    Ø12 C-KQ2U12-U02 14 22 20.9 61 20.9 55 22 57.4 45.4 53
    C-KQ2U12-U03 3/8 52
    C-KQ2U12-U04 62.5 54.5 52

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 A M Effective Area
    (mm²)     		Weight
    (g )
    Nylon Urethane
    Ø4 C-KQ2W04-U01 1/8 10 10.4 10 18 34.5 35.5 16 6.4 4.0 16
    C-KQ2W04-U02 1/4 14 37 38.5 26
    Ø6 C-KQ2W06-U01 1/8 10 12.8 10 20 38.5 41 17 10.9 10.9 18
    C-KQ2W06-U02 1/4 14 40.5 29
    C-KQ2W06-U03 3/8 17 41.5 42 40
    Ø8 C-KQ2W08-U01 1/8 12 15.2 12 23 43.5 46.5 18 20.5 14.2 28
    C-KQ2W08-U02 1/4 14 45.5 47 35
    C-KQ2W08-U03 3/8 17 46 48 46
    Ø10 C-KQ2W10-U02 1/4 17 18.5


    20.9     		17


    17     		26.5


    28.5     		52.5 56 21


    22     		33.5


    47.7     		23.8



    37.7     		67
    C-KQ2W10-U03 3/8 57
    C-KQ2W10-U04 1/2 22 54.5 98
    Ø12 C-KQ2W12-U02 1/4 17 54 58.5 69
    C-KQ2W12-U03 3/8 59
    C-KQ2W12-U04 22 56 99

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD L A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2S04-U01 1/8 3 10 23.5 18.5 16 4.1 3.6 7
    Ø6 C-KQ2S06-U01 1/8 4 11.8 24 19 17 10.0 9.9 9
    C-KQ2S06-U02 1/4 13.5 18 107 10.0 12
    Ø8 C-KQ2S08-U01 18 5 14 27.5 22.5 18.5 17.2 16.2 12
    C-KQ2S08-U02 1/4 6 28 22 23.3 14
    C-KQ2S08-U03 3/8 17 27.5 21.5 24
    Ø10 C-KQ2S10-U01 1/8 5 17 30 25 21 17.2 10.0 18
    C-KQ2S10-U02 1/4 8 29 23 39.0 26.6 17
    C-KQ2S10-U03 3/8 28.5 22.5 19
    C-KQ2S10-U04 1/2 21 29 21 36
    Ø12 C-KQ2S12-U02 1/4 8 19 30.5 25 22 46.0 44.5 20
    C-KQ2S12-U03 3/8 9 31 60.0 22
    C-KQ2S¹2-U04 1/2 21 28.5 20.5 30

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		ØD1 ØD2 L1 L2 L3 A M Effective Area
    (mm²)     		Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2V04-U01 18 8 10.4 13.4 22 13.5 25.5 20.5 16 2.9 2.9 12
    Ø6 C-KQ2V06-U01 1/8 8 12.8 13.4 24 13.5 25.5 20.5 17 7.5 7.5 13
    C-KQ2V06-U02 1/4 10 15.4 23.5 15.5 28 22 21
    Ø8 C-KQ2V08-U01 18 12 15.2 17.6 28.5 14.5 27.5 22.5 18.5 11.2 2430 2225
    C-KQ2V08-U02 14 16.5 29.5 23.5
    C-KQ2V08-U03 3/8 14 20.6 27.5 18.5 34 28 14.3 47 36
    Ø10 C-KQ2V10-U02 1/4 14 18.5 20.6 31 18.5 34 28 21 27 20.3 35
    C-KQ2V10-U03 3/8 38
    Ø12 C-KQ2V12-U03 3/8 17 20.9 25.2 34 20 26.5 30.5 22 39 30.8 52
    C-KQ2V12-U04 1/12 22.5 39.5 31.5 62

    Applicable
    Tubing O.D
    (mm)     		Model Connection Thread T H
    Width
    Across
    Flats     		D Q L1 L2 A M Effective Area
    (mm²)
    Weight
    (g)
    Nylon Urethane
    Ø4 C-KQ2Y 04-U01 18 11 10.5 4.6 18.1 20.1 34.1 16.1 6.4 6.4 13
    C-KQ2Y 04-U02 1/4 14 22.1 34.1 19
    Ø6 C-KQ2Y 06-U01 1/8 13 12.9 5.4 20.1 21.1 37.1 17.1 13.4 13.4 12
    C-KQ2Y 06-U02 14 14 23.1 37.1 20
    C-KQ2Y 06-U03 3/8 17 24.1 38.1 34
    Ø8 C-KQ2Y 08-U01 1/8 17 15.3 6.1 23.1 22.6 41.6 18.6 25.6 17.7 14
    C-KQ2Y 08-U02 14 24.6 42.1 22
    C-KQ2Y 08-U03 3/8 25.6 43.6 36
    Ø10 C-KQ2Y 10-U02 1/4 19 18.6 6.9 26.6 26.1 47.2 21 40 28.4 29
    C-KQ2Y 10-U03 3/8 27.1 48.1 39
    C-KQ2Y 10-U04 1/2 30.1 48.6 66
    Ø12 C-KQ2Y 12-U02 1/4 22 21 7.6 28.6 27.1 50.1 22.1 57.4 45.4 31
    C-KQ2Y 12-U03 3/8 28.1 51.2 41
    C-KQ2Y 12-U04 1/2 31.1 51.6 68

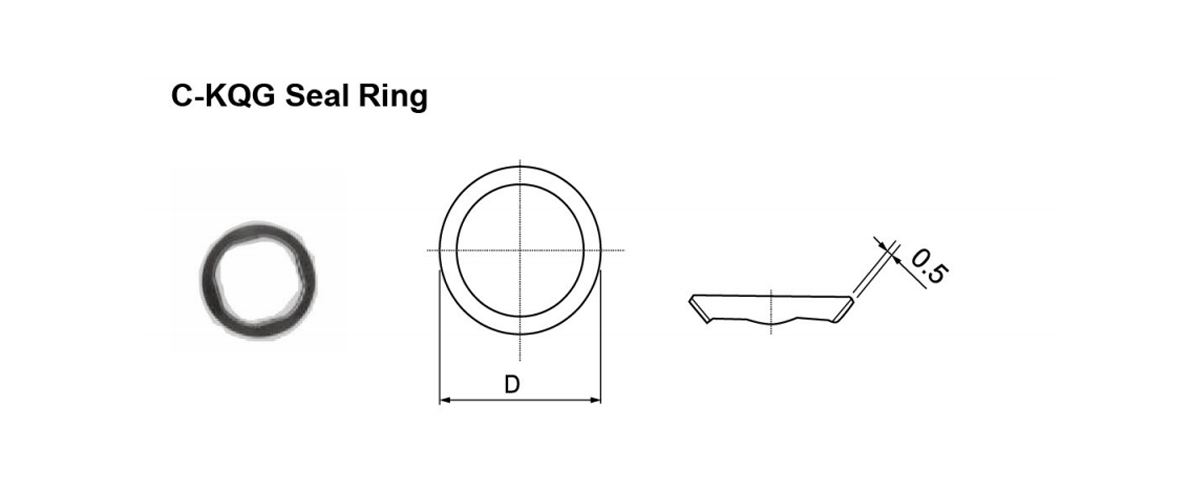

    Applicable Tubing O.D
    (mm)     		Connection Thread T ØD Weight
    (g)
    C-KQG-U01 18 11.8 0.12
    C-KQG-U02 14 15.3 0.19
    C-KQG-U03 3/8 18.7 0.23
    C-KQG-U04 12 23.4 0.34

Aiheeseen liittyvät tuotteet

Blogi ja uutiset

Uusimmat uutisemme ja
Blogi

Näytä lisää

Aito ja luotettava laatu erottuu luonnollisesti.

Valinta syntyy luottamuksesta, ja yhteistyö syntyy rehellisyydestä.

  • K: Kuinka pian voimme saada vastauksen kyselyn lähettämisen jälkeen?

    Vastaamme sinulle 24 tunnin kuluessa kyselyn vastaanottamisesta arkipäivinä.

  • K: Oletko suora valmistaja vai kauppayhtiö?

    Olemme valmistaja, ja meillä on oma kansainvälinen myyntiosasto. Joten voimme tuottaa ja myydä kaikki itse.

  • K: Voitko tehdä räätälöityjä tuotteita?

    Kyllä, voimme kehittää ja valmistaa tuotteita asiakkaiden toimittamien piirustusten tai näytteiden mukaan.

  • K: Miten yrityksesi takaa tuotteiden laadun?

    Ensinnäkin teemme tarkastuksen jokaisen prosessin jälkeen. Valmiille tuotteille teemme 100 % tarkastuksen asiakkaiden vaatimusten ja kansainvälisen standardin mukaisesti.

  • K: Minne tuotteesi pääasiassa viedään?

    Tuotteitamme viedään pääasiassa Saksaan, Yhdysvaltoihin, Tanskaan ja yli kymmeneen maahan Euroopassa ja Pohjois-Amerikassa
